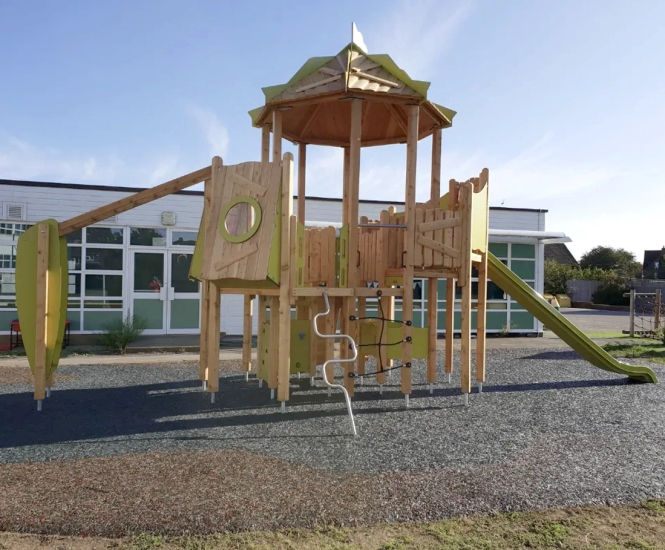

Play unit Elbrus, solo is a large outdoor play structure made from pressure-impregnated softwood and high pressure laminate, designed for children from 3 years. Includes climbing panels, ladders, platforms, fireman's pole, and stainless steel fittings, with a freefall height of 195 cm and a minimum space requirement of 9.78 x 6.43 x 3.75 m.

  • Large multi-activity play structure for children aged 3 and above

  • Made from pressure-impregnated softwood, high pressure laminate, and stainless steel

  • Includes climbing panels, ladders, platforms, and fireman's pole

  • Designed for safety with walk-through protective devices and access restrictions

  • Suitable for installation on sand with specified foundation types

  • High share of renewable raw materials and recycled content

Technical specification

Material

softwood pressure-impregnated

Minimal space

9,78x6,43x3,75 m

Fall protection netto

40,0 m²

Freefall height

195 cm

Biggest part

0,15x0,15x3,72 m

Foundation level

ET 400

Foundation

16x CF or 16x PFs

Soil quality

at least sand

Catalogue index

ecorino Play unit ecorino Elbrus

Applications

  • Public playgrounds

  • School outdoor areas

  • Parks and recreation spaces

  • Community play areas

Dimensions

Minimum space 9.78 x 6.43 x 3.75 m

Freefall height 195 cm

Impact protection area 40.0 m²

Biggest part 0.15 x 0.15 x 3.72 m

Materials

Pressure-impregnated softwood

High pressure laminate (HPL)

Stainless steel

Aluminium, plastic coated

Polyester-coated steel cable

Installation

Requires 2 persons, estimated assembly time 14 hours

Foundations: 16x CF or 16x PFs

Ground condition: at least sand

Sustainability

CO2 emissions 1100.7 kg

73% renewable raw materials

13% recycled material

Accreditations

Certificate: Z2_010651_514_Rev00
