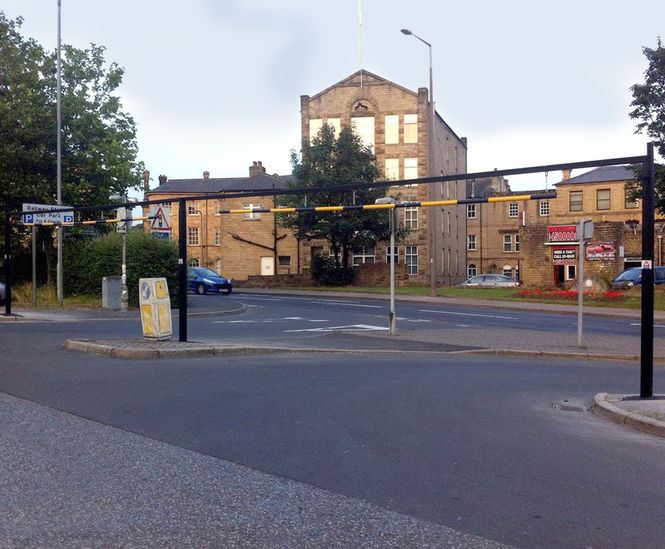

The double fixed height restrictor limits access to high-sided vehicles and is suitable for commercial and industrial sites. It has a standard clearance of 2.05m and spans two carriageways, preventing vehicles from circumventing the access control measures in place.

Manufactured from galvanised mild steel, the body of the height restrictor is available ragged or flanged and coated red as standard.

To alert drivers of the oncoming obstruction knocking bars and maximum height warning signs can be added as required.

Features

  • Galvanised steel

  • Finish coated red with white class 2 reflective tape

  • Standard widths from 6-12m

  • Available ragged for casting in or flanged for bolting down

Specifications

  • Galvanised steel main post construction 90 x 90 x 3mm

  • Base 400 x 400 x 10mm thick

  • Knocking bar: 48mm diameter tube

  • 600mm below ground (ragged version)

  • Four 16mm bolts required for each leg (flanged version)

Options

  • Available ragged for casting in or flanged for bolting down.

  • 600mm below ground (ragged version)

  • Four 16mm bolts required for each leg (flanged version).

  • Knocking bars available.

  • Road warning signs are available.

  • Swing Gates available upon request (Note: Swing Gates cannot be retrofitted to an existing height restrictor)
