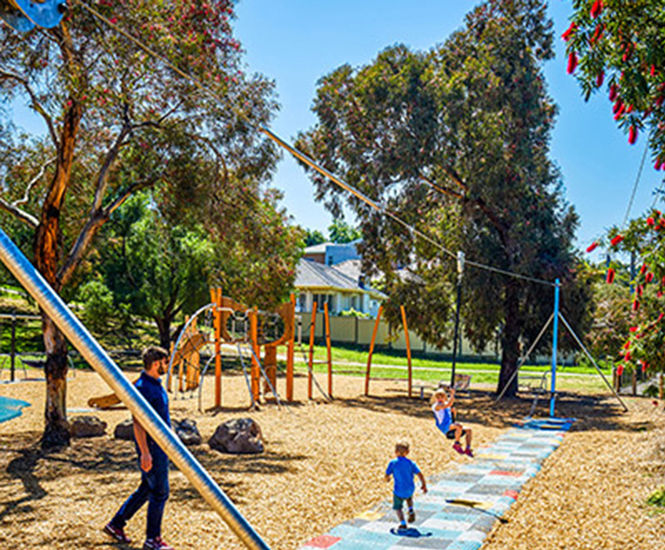

Cableway flying fox in metal for level ground, reference J514, is a single-user play equipment designed for children aged 4 and above. Intended for level ground installation, it features a 27.79 m long galvanised steel cableway with a stainless steel trolley, shock-absorbing rubber seat, and non-slip platforms. Free fall height is 1.40 m.

  • Single-user cableway for level ground play areas, suitable for children from 4 years
  • Galvanised steel beams and cable with stainless steel trolley for durability
  • Shock-absorbing honeycomb rubber seat and non-slip HPL platforms for safety
  • Polyamide trolley wheels reduce noise during use
  • Braking mechanism keeps trolley stationary when not in use
  • Protective plastic coating on supporting chain
  • Anti-vandalism polyamide caps on fixings
  • Certified by an independent laboratory for play and sports equipment

Applications

  • School playgrounds
  • Parks and public play areas
  • Community recreation spaces
  • Campsites and holiday leisure parks
  • Shopping centre outdoor zones
  • Residential developments

Dimensions

Length 27.79 m

Width 4.18 m

Height 4.19 m

Free fall height 1.40 m

Surface area 102.50 m²

Total weight 373.65 kg

Heaviest element 110.00 kg

Concrete volume 3.00 m³

Performance

Repairability score 9.17/10

Materials

Galvanised steel beams and cable

Stainless steel trolley

Polyamide trolley wheels and anti-vandalism caps

Shock-absorbing honeycomb rubber seat

Galvanised steel chain with plastic coating

60 mm diameter steel tubes

12.5 mm thick HPL non-slip platforms

Stainless or plated steel fixings

Installation

Requires 2 installers

Estimated installation time 20 hours

Accreditations

Certified by an independent laboratory for play and sports equipment
