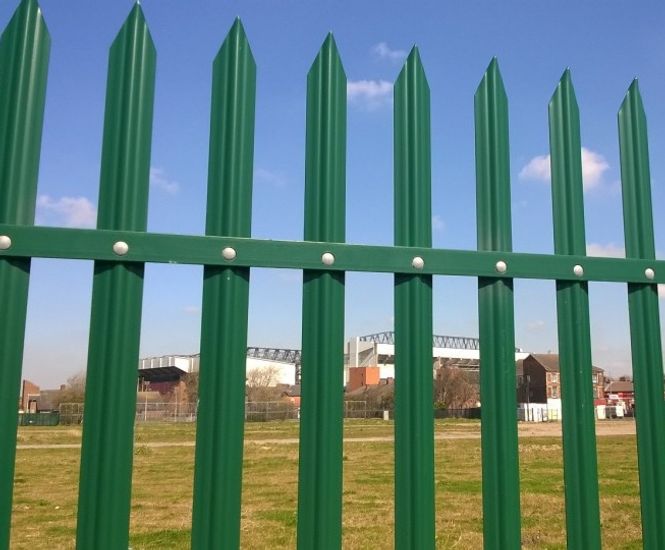

Lochrin® Combi™ is a security palisade fencing system providing high-security protection. The patented V-slot design allows upright pales to pass through slots in the horizontal rails rather than bolting to the front face. The pales are fixed with counterbored bolts making the full system more secure than traditional palisade fencing.

The number of pales can be increased from 17 up to 28 per panel to suit security requirements.

Accreditation

The system complies with BS 1722-12:2015, is approved to Secure By Design (a Police preferred specification) and government rated tests.

Applications

  • High-security establishments
  • Utility sites
  • MOD
  • Industrial units
  • Airports
  • CNI sites

Key benefits

  • Security fencing to BS 1722-12:2006, Secured by Design, and accredited and fully tested to government requirements
  • Compatible with electric fencing, perimeter intruder detection and CCTV
  • Quick and simple installation
  • Adaptable using 3 and 4mm thick pales for strength and reliable security
  • Heights from 900-4100mm
  • Suitable for raked fencing

Technical information

A standard 2.75m panel includes 17-28 Lochrin D section pales.

Panel heights
900, 1200, 1500, 1800, 2000, 2100, 2400 SBD, 2700, 3000 up to 4100mm

Posts
102 x 44mm rolled steel joist (RSJ) section or 127 x 76mm and 152 x 89mm universal beams

Pales
Number per panel: 17 to 28
Profile: D section
Top: pointed, rounded, or rounded and notched
Thickness: 3 or 4mm

Horizontal support rails
2, 3 or 4 RSA rails with V-shaped slots for pale insertion
45 x 45 x 6mm for 3mm pales
50 x 50 x 6mm for 4mm pales

Finish

Hot dipped galvanised to BS EN ISO 1461 or powder-coated to RAL colours.

Accessories

In-house fabrication facilities enable Lochrin Bain to manufacture pedestrian access and vehicle gates (single, and double), specialist posts, and other bespoke security solutions to suit fence styles and applications.

Technical support

CAD drawings, data sheets, bill pages and site specific solutions are available from the company's specification team.
