Product name Bodpave 40™
Format Pavers
Max. loading HGV
Functions Gravel stabilisation
Soil reinforcement
Stormwater infiltration
Turf reinforcement
Suitability Airports
Car parks
Caravan parks
Cycle routes
Driveways
Equestrian areas
Fire access routes
Footpaths
Temporary car parks
Verges
Material Recycled plastic
Characteristics Recycled materials
UV stabilised
Colours Black / Green
Dimensions (l x w x d) 500 x 500 x 40mm
Weight (kg/m2) 4.4

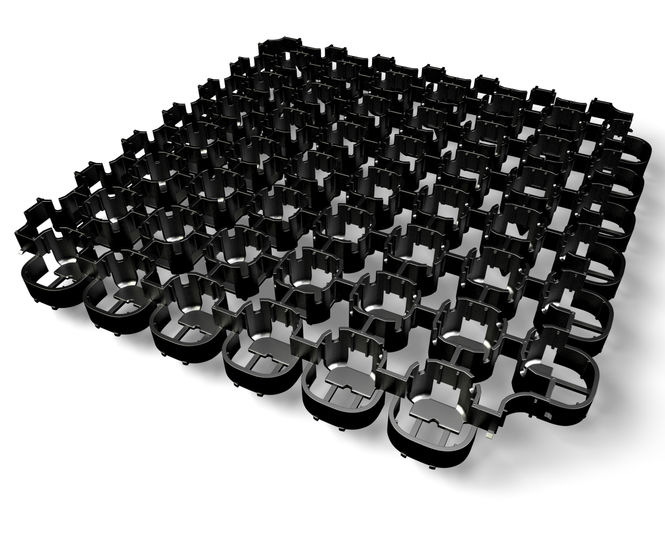

The new and improved Bodpave™ 40 interlocking plastic porous paving system for grass and ground reinforcement is designed for applications where there is regular pedestrian or vehicle use. It is made from 100% recycled plastic.

The improved design incorporates 4 pre-clipped pavers that help reduce installation time by 25% versus traditional methods. The design has also helped increase the connection strength between the pavers by 250%. But the product is not only stronger, it is also better at transferring loads, reducing connection failures and lifting risks. All this results in improved durability, ensuring less failures and a longer service life.

Features and benefits

  • Over 250% stronger connections
  • Over 25% faster installation
  • 100% recycled and recyclable
  • 50% lower CO2 footprint
  • Manufactured in the UK
  • Lightweight
  • Available in black and green (green is made to order)

Applications

  • Car and light vehicle parks
  • Overspill / overflow grass car parks
  • Walkways, disabled access routes and golf buggy paths
  • Driveways and residential lawn parking
  • SuDS applications

Size and weight

  • Unit size: 500 x 500 x 40mm plus 20mm ground spike
  • Internal cell size: 63mm (cruciform) / 46mm (round)
  • Cell wall thickness: 2.5–5mm
  • Coverage: 4 units sqm
  • Weight: 4.4kg sqm


The new and improved Bodpave™ 40 interlocking plastic porous paving system for grass and ground reinforcement is designed for applications where there is regular pedestrian or vehicle use. It is made from 100% recycled plastic.

The improved design incorporates 4 pre-clipped pavers that help reduce installation time by 25% versus traditional methods. The design has also helped increase the connection strength between the pavers by 250%. But the product is not only stronger, it is also better at transferring loads, reducing connection failures and lifting risks. All this results in improved durability, ensuring less failures and a longer service life.

Features and benefits

  • Over 250% stronger connections
  • Over 25% faster installation
  • 100% recycled and recyclable
  • 50% lower CO2 footprint
  • Manufactured in the UK
  • Lightweight
  • Available in black and green (green is made to order)

Applications

  • Car and light vehicle parks
  • Overspill / overflow grass car parks
  • Walkways, disabled access routes and golf buggy paths
  • Driveways and residential lawn parking
  • SuDS applications

Size and weight

  • Unit size: 500 x 500 x 40mm plus 20mm ground spike
  • Internal cell size: 63mm (cruciform) / 46mm (round)
  • Cell wall thickness: 2.5–5mm
  • Coverage: 4 units sqm
  • Weight: 4.4kg sqm
