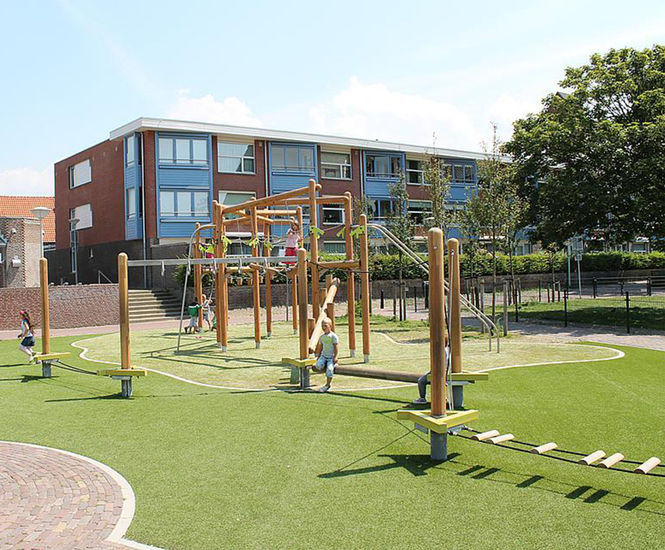

Play unit Titanos is a large outdoor play structure made from pressure-impregnated softwood, hardwood, steel, and high-pressure laminate, designed for children aged 6 and above. Key features include multiple climbing, sliding, and crossing elements, stainless steel components, and a modular design for varied play experiences.

  • Outdoor play structure for children aged 6+

  • Includes climbing, sliding, and bridge elements

  • Made from pressure-impregnated softwood, oiled hardwood, galvanised steel, stainless steel, and high-pressure laminate

  • Modular design with multiple posts, platforms, and crossovers

  • Plastic-coated steel cables for added safety

  • Rotating beam with maintenance-free bearing

  • Designed for durability and varied play activities

Technical specification

Material

softwood pressure-impregnated

Minimal space

24,18x9,35x4,46 m

Fall protection netto

82,5 m²

Freefall height

266 cm

Biggest part

Ø 14x344 cm

Foundation level

ET 400/800

Foundation

21x CF or 14x PFs + 7x CF

Soil quality

at least sand

Catalogue index

unique Play unit unique Titanos

Applications

  • Public playgrounds

  • School outdoor areas

  • Parks and recreation spaces

  • Community play areas

  • Leisure and holiday parks

Dimensions

Minimum space 24.18 x 9.35 x 4.46 m

Freefall height 266 cm

Impact protection area 82.5 m²

Biggest part diameter 14 cm, length 344 cm

Installation

Assembly by 2 people in 14 hours

Requires foundations: 21x CF or 14x PFs + 7x CF

Suitable for ground with at least sand quality

Sustainability

CO2 emissions 3117.8 kg

60% renewable raw materials

31% recycled material
