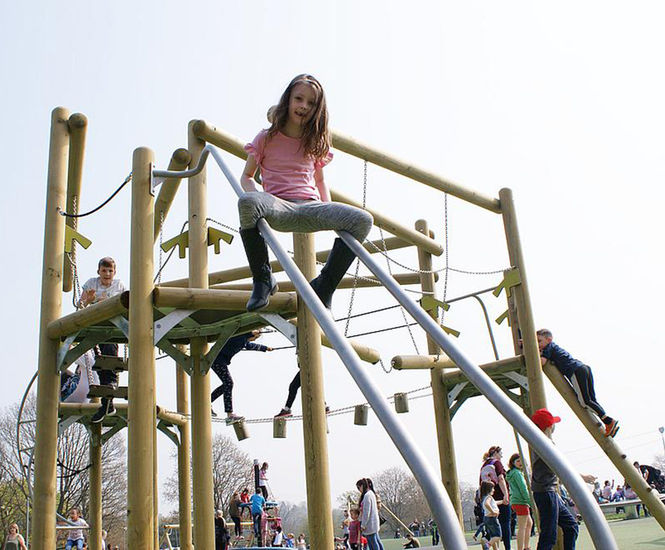

eibe's Venetos play unit is a large outdoor play structure made from pressure-impregnated softwood, stainless steel, galvanised steel, and high-pressure laminate, designed for children aged 6 and above. Key features include multiple platforms, slides, climbing elements, and crossovers, supporting varied play and movement activities in public or school playgrounds.

  • Large multi-activity play structure for children aged 6+

  • Includes platforms, slides, climbing ascents, and crossovers

  • Made from pressure-impregnated softwood, stainless steel, galvanised steel, and HPL

  • Supports a wide range of physical activities and group play

  • Designed for durability and safety in outdoor environments

  • Requires minimal space of 11.07 x 9.22 x 4.46 m

  • Impact protection area of 66.5 m² and freefall height of 266 cm

Applications

  • Public playgrounds

  • School outdoor play areas

  • Parks and recreation spaces

  • Community centres

  • Leisure and holiday parks

Technical data

Material

softwood pressure-impregnated

Minimal space

11,07x9,22x4,46 m

Fall protection netto

66,5 m²

Freefall height

266 cm

Biggest part

Ø 14x344 cm

Foundation level

ET 400

Foundation

16x CF or 16x PFs

Soil quality

at least sand

Catalogue index

unique Play unit unique Venetos

Dimensions

  • Minimum space 11.07 x 9.22 x 4.46 m

  • Freefall height 266 cm

  • Impact protection area 66.5 m²

  • Biggest part diameter 14 cm, length 344 cm

Materials

Pressure-impregnated softwood

Stainless steel

Galvanised steel

High-pressure laminate (HPL)

Plastic-coated steel cable

Installation

Requires 2 persons, estimated assembly time 12 hours

Foundations: 16x CF or 16x PFs

Suitable for ground with at least sand quality

Sustainability

CO2 emissions 2106.4 kg

61% renewable raw materials

27% recycled material
