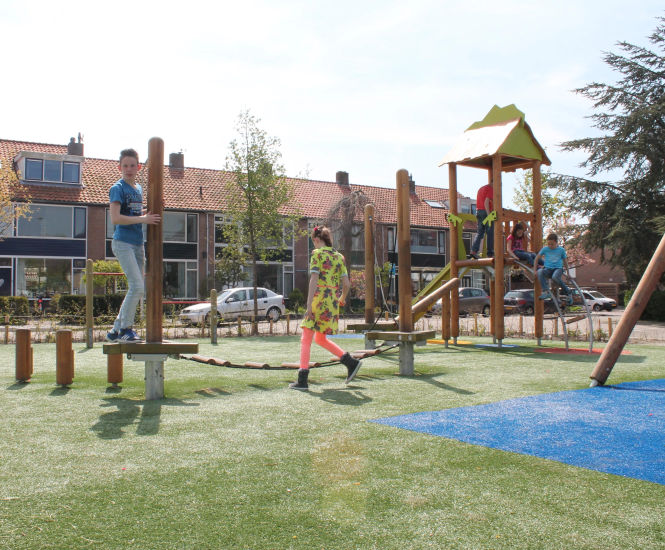

Play unit Shiro, solo is a modular outdoor play structure made from pressure-impregnated softwood, steel, high-pressure laminate, and oiled hardwood, designed for children aged 4 and above. Distinctive features include a twisted ladder, suspension bridge, cable crossing, and multiple platforms, supporting creative and active play in public spaces.

  • Outdoor play structure for children aged 4+

  • Includes twisted ladder, suspension bridge, cable crossing, and multiple platforms

  • Made from pressure-impregnated softwood, galvanised steel, HPL, and oiled hardwood

  • Roof incorporates softwood and HDPE panel

  • Plastic-coated steel cable for added durability

  • Designed for safety with a freefall height of 145 cm and impact protection area

  • Supports group and solo play activities

Technical specifications

Material

softwood pressure-impregnated

Minimal space

11,57x9,30x4,32 m

Fall protection netto

31,0 m²

Freefall height

145 cm

Biggest part

Ø 14x316 cm

Foundation level

ET 400/800

Foundation

16x CF or 6x PFs + 10x CF

Soil quality

at least sand

Catalogue index

unique Play unit unique Shiro

Applications

  • Public playgrounds

  • School outdoor areas

  • Parks and recreation spaces

  • Community play zones

  • Residential developments

Dimensions

Minimum space 11.57 x 9.30 x 4.32 m

Freefall height 145 cm

Impact protection area 31.0 m²

Biggest part diameter 14 x 316 cm

Materials

Pressure-impregnated softwood

Galvanised steel

High-pressure laminate (HPL)

Oiled hardwood

Stainless steel

HDPE panel

Plastic-coated steel cable

Installation

Requires 2 people, estimated assembly time 7 hours

Suitable for installation on lawn or sand

Foundations: 16x CF or 6x PFs + 10x CF

Sustainability

CO2 emissions 1509.6 kg

61% renewable raw materials

26% recycled material
