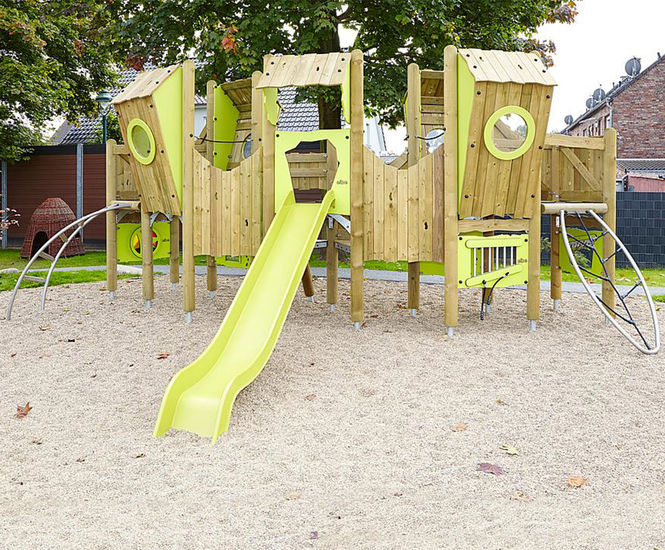

Play unit Ofelia, solo is a modular outdoor play structure made from pressure-impregnated softwood, high-pressure laminate, galvanised and stainless steel, and HDPE. Designed for children aged 3 and up, it includes multiple platforms, climbing elements, and interactive play panels, supporting varied play activities in public or commercial playgrounds.

  • Multiple play platforms and climbing features encourage active play

  • Interactive panels include sound, mirror, and theatre elements

  • Durable materials suitable for outdoor use

  • UV-resistant acrylic glass for safety and longevity

  • Stainless steel and galvanised steel components for corrosion resistance

  • Suitable for children from 3 years

Applications

  • Public playgrounds

  • Parks and recreation areas

  • School playgrounds

  • Commercial outdoor play spaces

Technical data

Material

softwood pressure-impregnated

Minimal space

9,56x8,71x3,25 m

Fall protection netto

50,0 m²

Freefall height

145 cm

Biggest part

Ø 14x304 cm

Heaviest part

38 kg

Foundation level

ET 400

Foundation

19x CF or 19x PFs

Soil quality

at least sand

Catalogue index

unique Play unit unique Ofelia

Physical attributes

Minimal space required is 9.56 x 8.71 x 3.25 m. Freefall height is 145 cm. Largest part measures Ø 14 x 304 cm. Heaviest part weighs 38 kg. Fall protection area is 50.0 m².

Materials

Made from pressure-impregnated softwood, high-pressure laminate (HPL), galvanised steel, stainless steel, HDPE, acrylic glass (UV-resistant), macrolon, and aluminium.

Installation

Requires 19 CF or 19 PFs foundations. Suitable for soil quality of at least sand. Foundation level ET 400.

Sustainability

Includes pressure-impregnated softwood and durable materials designed for long-term outdoor use.
