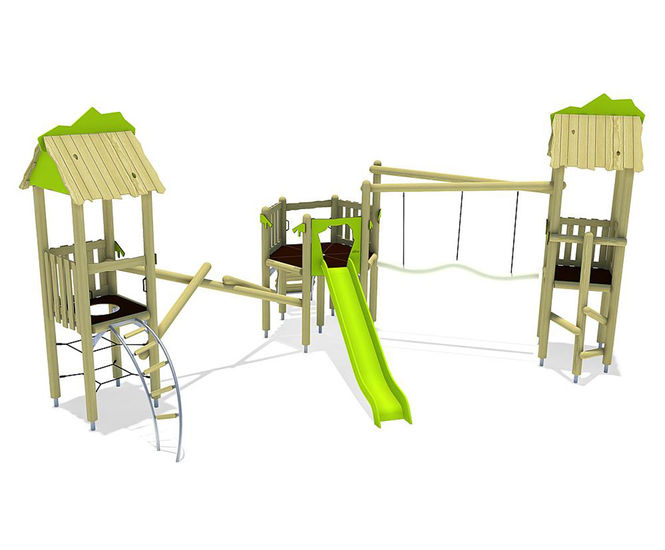

Play unit Jeffron 1, solo is a large outdoor play structure made from pressure-impregnated softwood, steel, and high-pressure laminate, designed for children aged 4 and above. Key features include multiple platforms, wall panels, bridges, slides, and climbing elements, with a focus on durability and safety for public play areas.

  • Large multi-activity play structure for children aged 4+

  • Made from pressure-impregnated softwood, galvanised steel, stainless steel, and high-pressure laminate

  • Includes platforms, wall panels, arch ramp, twisted ladder, bridges, and slides

  • Designed for high safety with a freefall height of 145 cm and impact protection area

  • Requires minimal space of 10.73 x 9.36 x 4.32 m

  • Suitable for installation on sand or lawn with 20 foundation points

  • 67% renewable raw materials and 16% recycled content

  • CO2 emissions of 2325.7 kg per unit

Technical specifications

Material

softwood pressure-impregnated

Minimal space

10,73x9,36x4,32 m

Fall protection netto

64,5 m²

Freefall height

145 cm

Biggest part

Ø 14x299 cm

Foundation level

ET 400

Foundation

20x CF or 20x PFs

Soil quality

at least sand

Catalogue index

unique Play unit unique Jeffron 1

Applications

  • Public playgrounds

  • School outdoor areas

  • Parks and recreation spaces

  • Community play zones

  • Leisure centres

Dimensions

Minimal space 10.73 x 9.36 x 4.32 m

Freefall height 145 cm

Impact protection area 64.5 m²

Biggest part diameter 14 x 299 cm

Materials

Pressure-impregnated softwood

Galvanised steel

Stainless steel

High-pressure laminate (HPL)

HDPE

Plastic-coated steel cable

Installation

Requires 2 people, estimated assembly time 10 hours

20 foundations (CF or PFs) required

Suitable for installation on sand or lawn

Sustainability

67% renewable raw materials

16% recycled content

CO2 emissions 2325.7 kg per unit
