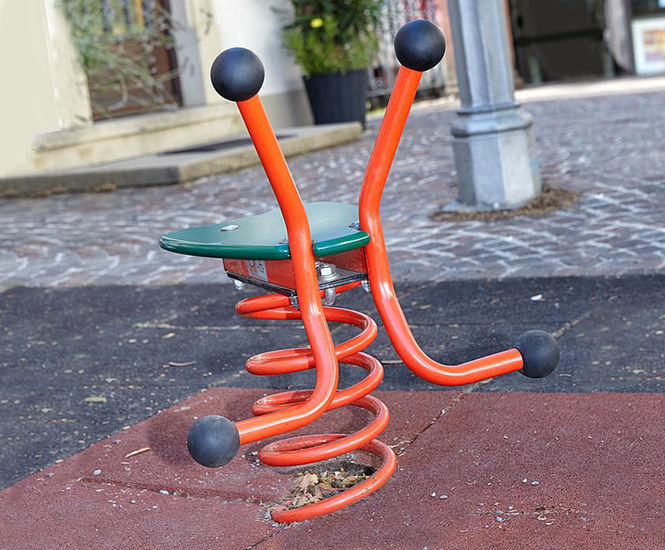

Spring rocker Butterfly is a playground rocker with a butterfly-shaped design, made from powder-coated steel and high-density polyethylene (PE) seat, suitable for children from 3 years. Designed for outdoor play areas, it supports a freefall height of 40 cm and requires minimal installation space.

  • Playground rocker with butterfly design for children aged 3 and above

  • Made from powder-coated steel and PE for durability and weather resistance

  • Compact footprint with minimal space requirement of Ø 2.80 x 2.40 m

  • Freefall height of 40 cm for safety compliance

  • Includes spring made from powder-coated spring steel

  • Certified by TÜV product service

  • Suitable for installation on topsoil with specified foundation options

Technical specification

Minimal space

Ø 2,80x2,40 m

Fall protection netto

6,5 m²

Freefall height

40 cm

Biggest part

46x40x30 cm

Heaviest part

10 kg

Foundation level

ET 0 oder ET 450

Foundation

1x 5591600 + 1x CF or 1x 5632100 + 1x CF

Soil quality

at least top soil

Catalogue index

Spring rocker Rocker Butterfly

Applications

  • Public playgrounds

  • School play areas

  • Parks and recreation spaces

  • Nurseries and early years settings

  • Residential communal gardens

Dimensions

Minimal space Ø 2.80 x 2.40 m

Fall protection area 6.5 m²

Freefall height 40 cm

Biggest part 46 x 40 x 30 cm

Heaviest part 10 kg

Materials

Powder-coated steel body

High-density polyethylene (PE) seat

Powder-coated spring steel

Colours

Steel frame RAL 2002 blood orange

Seat green

Spring RAL 3000 flame red

Head and foot plates RAL 9005 deep black

Installation

Requires one person, approximately 1 hour

Foundation options: 1x 5591600 + 1x CF or 1x 5632100 + 1x CF

Suitable for installation on at least topsoil

Accreditations

TÜV product service certified

Sustainability

CO2 emissions 182.9 kg

Share of renewable raw materials 1%

Share of recycled material 50%

Weighted emission factor 6.3 kg
