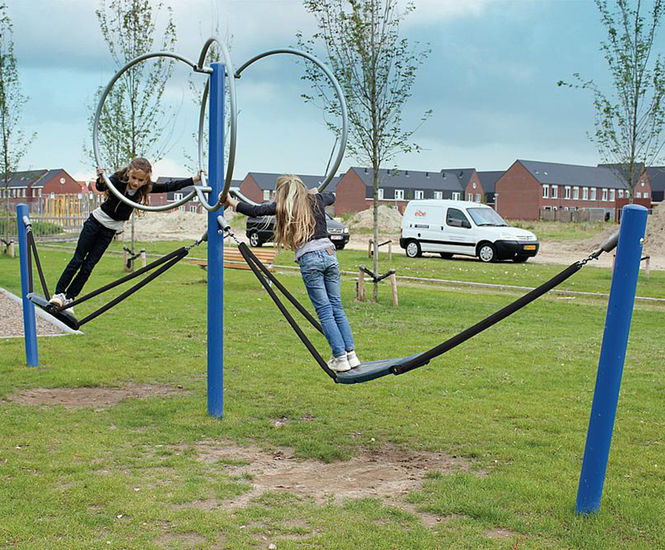

Double Curver is a two-seat swing made from powder-coated and galvanised steel, designed for simultaneous use by two people to create a fast, horizontal swinging motion. Blue in colour, it features stainless steel joints, rubber seats with steel reinforcement, and is suitable for outdoor play areas.

  • Two-seat swing for coordinated movement by two users

  • Made from powder-coated and galvanised steel for durability

  • Includes stainless steel joints and reinforced rubber seats

  • Blue finish (RAL 5015) for visual appeal

  • Requires minimal space of 6.10 x 3.41 x 2.65 m

  • Freefall height of 85 cm for safety compliance

  • Supplied with chains, posts, joints, seats, and holding brackets

Technical specification

Material

powdered steel

Minimal space

6,10x3,41x2,65 m

Fall protection netto

21,5 m²

Freefall height

85 cm

Biggest part

312x160x86 cm

Heaviest part

90 kg

Foundation level

ET 800

Foundation

3x CF

Soil quality

at least lawn

Catalogue index

Swing Curver Double curver

Applications

  • Public playgrounds

  • School outdoor areas

  • Parks and recreation spaces

  • Community play zones

  • Residential shared gardens

Dimensions

Minimal space 6.10 x 3.41 x 2.65 m

Biggest part 312 x 160 x 86 cm

Heaviest part 90 kg

Fall protection area 21.5 m²

Freefall height 85 cm

Materials

Powder-coated and galvanised steel (posts, chains)

Stainless steel (joints, holding brackets)

Rubber with steel reinforcement (seats)

Colours

Blue (RAL 5015)

Installation

Requires three CF foundations

Minimum ground quality: lawn

Assembly by two people in approximately 2.5 hours

Sustainability

CO2e emissions of materials and production process accounted for
