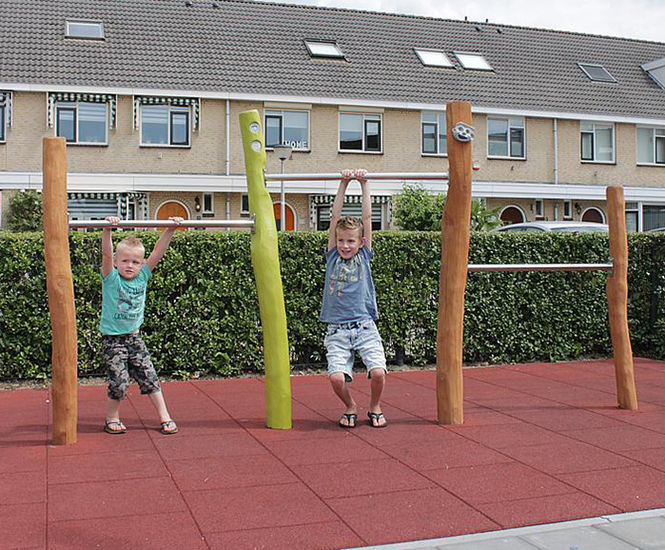

Three-level horizontal bar Albin is a play and gymnastics structure made from oiled robinia wood and stainless steel, designed for children from age 3. Ergonomically adapted for various age groups, it supports active play and physical development in outdoor environments.

  • Three-level horizontal bar system for play and gymnastics activities

  • Made from oiled robinia wood with stainless steel bars

  • Ergonomic design suitable for children of different ages

  • Includes four robinia posts and three stainless steel bars

  • Freefall height of 135 cm with 17.5 m² impact protection area

  • High share of renewable raw materials (93%) and low CO2 emissions (39.3 kg)

Technical specifications

Material

robinia oiled

Minimal space

6,13x3,54x3,20 m

Fall protection netto

17,5 m²

Freefall height

135 cm

Biggest part

Ø 16x230 cm

Heaviest part

50 kg

Foundation level

ET 900

Foundation

4x CF

Soil quality

at least lawn

Catalogue index

paradiso Three-level horizontal bar Albin

Applications

  • Playgrounds

  • School outdoor areas

  • Parks and recreational spaces

  • Public open spaces

  • Children’s activity zones

Dimensions

Minimum space: 6.13 x 3.54 x 3.20 m

Freefall height: 135 cm

Impact protection area: 17.5 m²

Largest part: Ø 16 x 230 cm

Heaviest part: 50 kg

Materials

Robinia wood (oiled)

Stainless steel (bars)

Colours

Chestnut

Finish

Oiled wood, sandblasted stainless steel

Installation

Requires four CF foundations

Suitable for installation on lawn

Foundation level: ET 900

Sustainability

CO2 emissions: 39.3 kg

Share of renewable raw materials: 93%

Share of recycled material: 5%
