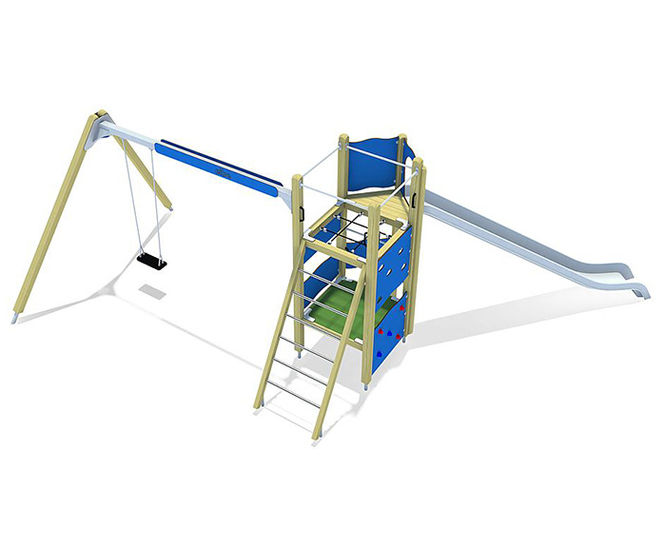

Martin play unit, solo is a modular outdoor play structure made from pressure-impregnated softwood and larch, designed for children aged 3 and above. Key features include climbing panels, a net frame, a sloped ladder, a platform, a swing, and a slide entry board, with stainless steel fittings and impact protection for safety.

  • Outdoor play structure for children aged 3+

  • Made from pressure-impregnated softwood and larch with stainless steel fittings

  • Includes climbing panels, net frame, platform, swing, and slide entry board

  • Impact protection area of 53.0 m² and freefall height of 195 cm

  • Modular design with multiple play elements for varied activities

  • Suitable for installation on sand or similar ground conditions

  • Certified to Z2_010651_0526_Rev00

Technical specifications

Material

softwood pressure-impregnated

Minimal space

9,66x8,95x3,75 m

Fall protection netto

53,0 m²

Freefall height

195 cm

Biggest part

272 cm

Foundation level

ET 400

Foundation

7x CF or 7x PFs

Soil quality

at least sand

Applications

  • Public playgrounds

  • School outdoor areas

  • Parks and recreation spaces

  • Community play areas

  • Kindergarten and nursery outdoor spaces

Dimensions

Minimum space 9.66 x 8.95 x 3.75 m

Freefall height 195 cm

Biggest part 272 cm

Impact protection area 53.0 m²

Materials

Pressure-impregnated softwood

Larch

Stainless steel fittings

HPL (high-pressure laminate) panels

Plastic-coated steel rope

Rubber (tarpaulin platform)

Aluminium climbing grips, plastic-coated

Galvanised steel (swing)

Installation

Requires 2 people, estimated 8 hours assembly

Foundations: 7x CF or 7x PFs

Ground condition: at least sand

Accreditations

Certificate Z2_010651_0526_Rev00

Sustainability

CO2 emissions 737.6 kg

59% renewable raw materials

15% recycled material
