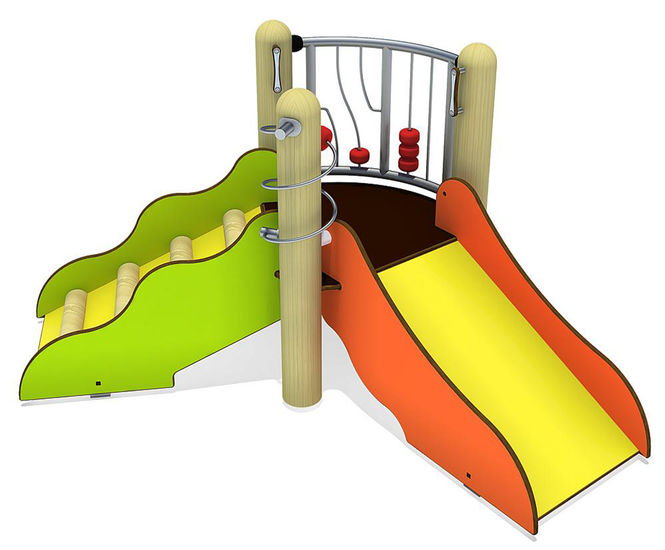

Play unit Violet is a compact outdoor play structure made from pressure-impregnated softwood and high-pressure laminate, designed for young children from 1 year. Key elements include a climbing ramp, belly board, spiral, and platform, with stainless steel and polyethylene details for durability and safety. Suitable for small spaces and early years settings.

  • Compact play structure for early years outdoor environments

  • Made from pressure-impregnated softwood, high-pressure laminate, stainless steel, and polyethylene

  • Includes climbing ramp, belly board, spiral, and platform

  • Designed for children from 1 year

  • Minimal installation space required

  • Low freefall height for enhanced safety

  • Components pre-assembled for straightforward installation

Technical specification

Material

softwood pressure-impregnated

Minimal space

5,01x4,10x2,20 m

Fall protection netto

7,5 m²

Freefall height

40 cm

Biggest part

88x58x46,5 cm

Heaviest part

23 kg

Foundation level

ET 400

Foundation

5x CF or 2x PFs + 3x PFr

Soil quality

at least lawn

Catalogue index

minimondo Play unit Violet

Applications

  • Nurseries and preschools

  • Public playgrounds

  • Residential play areas

  • Community parks

  • Early years outdoor learning spaces

Dimensions

Minimum space 5.01 x 4.10 x 2.20 m

Freefall height 40 cm

Biggest part 88 x 58 x 46.5 cm

Heaviest part 23 kg

Impact protection area 7.5 m²

Materials

Pressure-impregnated softwood

High-pressure laminate (HPL)

Stainless steel

Polyethylene

Galvanised steel

Installation

Requires 2 people, estimated 1 hour assembly

Suitable for installation on lawn

Foundations: 5x CF or 2x PFs + 3x PFr

Sustainability

CO2 emissions 243.3 kg

23% renewable raw materials

21% recycled material
