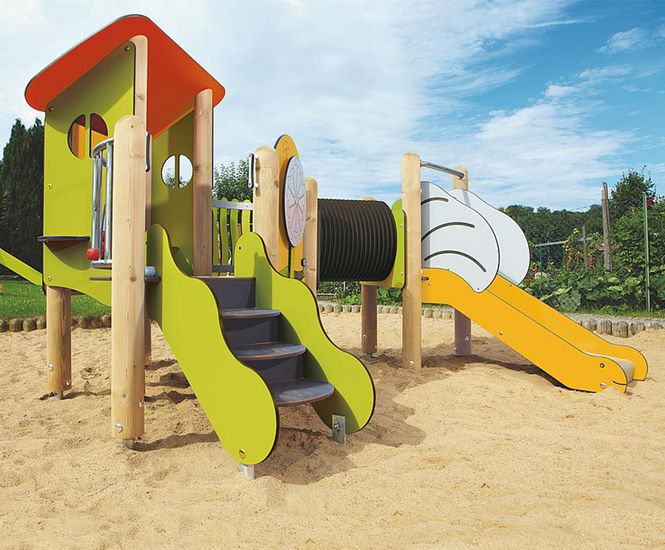

Play unit Salvia is a modular outdoor play structure made from pressure-impregnated softwood and high-pressure laminate, designed for children from 1 year. Includes elements such as a slide, platforms, crawling tunnel, and themed parapets, with stainless steel and galvanised steel components for durability.

  • Outdoor play structure for young children with multiple play elements

  • Made from pressure-impregnated softwood, high-pressure laminate, stainless steel, and galvanised steel

  • Includes slide with stainless steel surface, crawling tunnel, themed parapets, and platforms

  • Designed for safety with a freefall height of 59 cm and impact protection area of 7.0 m²

  • Bright, child-friendly colours and themed design features

  • Suitable for installation on lawn with specified foundation requirements

Technical specification

Material

softwood pressure-impregnated

Minimal space

5,80x5,49x2,40 m

Fall protection netto

7,0 m²

Freefall height

59 cm

Biggest part

132x88x1,5 cm

Heaviest part

55 kg

Foundation level

ET 400

Foundation

13x CF or 2x PFs + 11x PFr

Soil quality

at least lawn

Catalogue index

minimondo Play unit Salvia

Applications

  • Public playgrounds

  • Nurseries and preschools

  • Parks and recreation areas

  • School outdoor spaces

  • Residential developments

Dimensions

Minimum space 5.80 x 5.49 x 2.40 m

Biggest part 132 x 88 x 1.5 cm

Heaviest part 55 kg

Performance

Freefall height 59 cm

Impact protection area 7.0 m²

Materials

Pressure-impregnated softwood

High-pressure laminate (HPL)

Stainless steel

Galvanised steel

Polyethylene

Polypropylene

Colours

Green, orange, yellow, brown, grey, red

Installation

Requires 2 persons, estimated assembly time 3 hours

Minimum ground condition: lawn

Foundations: 13x CF or 2x PFs + 11x PFr
