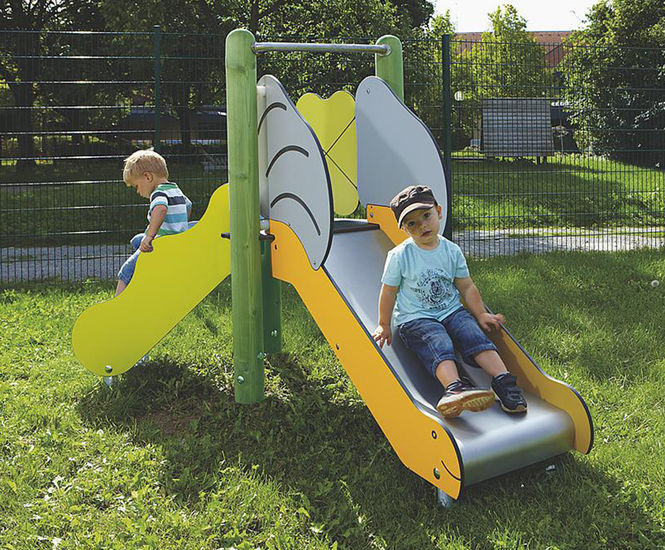

Play unit Gentian is a compact outdoor play structure made from pressure-impregnated softwood and high-pressure laminate, designed for young children from 1 year. Key features include a slide with stainless steel surface, staircase, platform, and cloverleaf parapet, all supported by galvanised steel post bases.

  • Compact play structure for early years outdoor environments

  • Made from pressure-impregnated softwood and high-pressure laminate for durability

  • Includes slide with stainless steel sliding surface for smooth play

  • Galvanised steel post bases for stability and longevity

  • Minimal space required: 5.10 x 4.11 x 2.40 m

  • Designed for easy assembly by two people in 1.5 hours

  • Suitable for installation on lawn with specified foundation types

Technical specification

Material

softwood pressure-impregnated

Minimal space

5,10x4,11x2,40 m

Fall protection netto

7,5 m²

Freefall height

59 cm

Biggest part

168x71x49 cm

Heaviest part

55 kg

Foundation level

ET 400

Foundation

5x CF or 2x PFs + 3x PFr

Soil quality

at least lawn

Catalogue index

minimondo Play unit Sliding combination Gentian

Applications

  • Nursery and preschool outdoor play areas

  • Public playgrounds for young children

  • School early years settings

  • Community parks

  • Residential developments with shared play spaces

Dimensions

Minimal space 5.10 x 4.11 x 2.40 m

Freefall height 59 cm

Biggest part 168 x 71 x 49 cm

Heaviest part 55 kg

Impact protection area 7.5 m²

Materials

Pressure-impregnated softwood

High-pressure laminate (HPL)

Stainless steel (slide surface, fixings)

Galvanised steel (post bases, supports)

Installation

Assembly by 2 people in 1.5 hours

Requires foundations: 5x CF or 2x PFs + 3x PFr

Suitable for installation on lawn

Sustainability

CO2 emissions: 298.9 kg

Share of renewable raw materials: 18%

Share of recycled material: 18%
