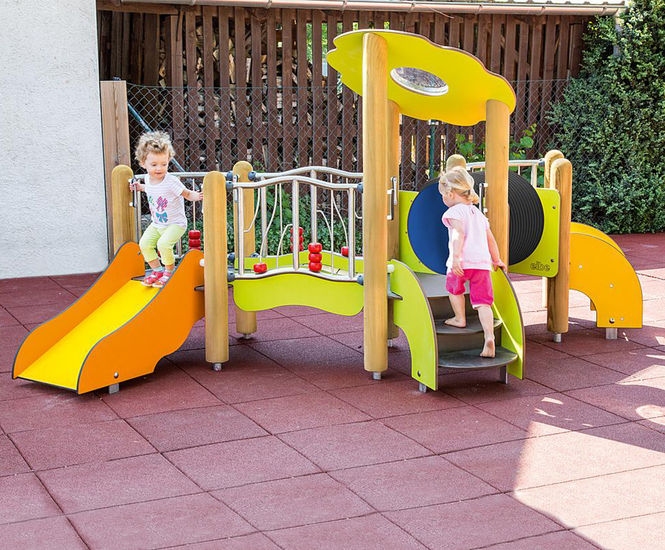

Play unit Rose is a modular outdoor play structure made from pressure-impregnated softwood and high-pressure laminate (HPL), with stainless steel and galvanised steel components. Designed for children from 1 year, it includes platforms, a crawling tube, arched bridge, staircase, ramp, and fence elements, supporting safe play in public or private outdoor spaces.

Features and Benefits

  • Modular design with multiple play elements including platforms, bridge, tube, and ramp

  • Made from pressure-impregnated softwood and durable HPL for outdoor use

  • Stainless steel and galvanised steel components for enhanced longevity

  • Suitable for children from 1 year, with low freefall height for safety

  • Pre-assembled elements for efficient installation

  • Supports impact protection with specified net area

Applications

  • Public playgrounds

  • Nurseries and early years settings

  • Private gardens

  • Parks and recreational areas

Technical data

Material

softwood pressure-impregnated

Minimal space

6,66x4,71x2,24 m

Fall protection netto

7,5 m²

Freefall height

44 cm

Biggest part

100x100x1,5 cm

Heaviest part

23 kg

Foundation level

ET 400

Foundation

12x CF or 3x PFs + 9x PFr

Soil quality

at least lawn

Catalogue index

minimondo Play unit Rose

Physical attributes

Minimum space required is 6.66 x 4.71 x 2.24 m. Freefall height is 44 cm. Largest part measures 100 x 100 x 1.5 cm, heaviest part is 23 kg.

Materials

Made from pressure-impregnated softwood, high-pressure laminate (HPL), stainless steel, galvanised steel, polyethylene, polypropylene, and Makrolon.

Installation

Requires two people and approximately four hours for assembly. Needs a foundation of 12x CF or 3x PFs plus 9x PFr, with ground conditions of at least lawn.

Sustainability

Product CO2 emissions are 606.1 kg. Contains 30% renewable raw materials and 20% recycled material.
