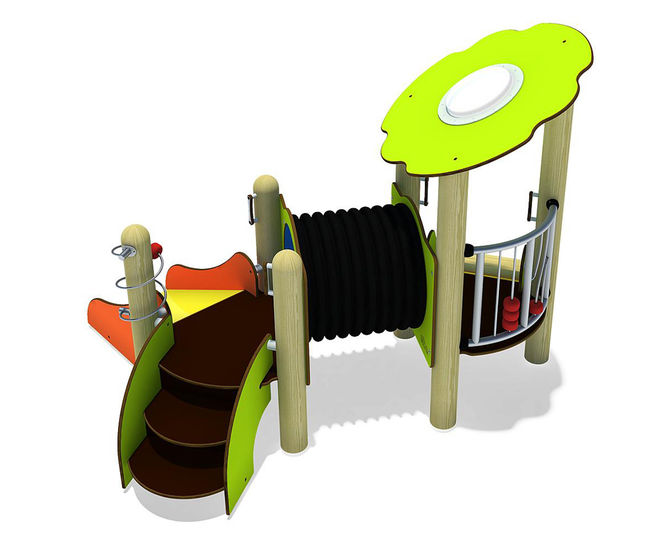

Play unit Carnation is a modular outdoor play structure made from pressure-impregnated softwood and high-pressure laminate, designed for young children from 1 year. Key features include a belly board, fence element, crawling tube, ramp, staircase, platforms, roof, and spiral, with stainless steel and PE components for durability and safety.

  • Modular play structure for early years outdoor environments

  • Made from pressure-impregnated softwood, high-pressure laminate, stainless steel, and PE

  • Includes multiple play elements such as ramp, crawling tube, and spiral

  • Designed for children from 1 year

  • Minimal space required: 5.51 x 4.78 x 2.20 m

  • Freefall height of 40 cm for enhanced safety

  • Impact protection area of 7.5 m²

  • Assembly by 2 people in approximately 3 hours

Technical specification

Material

softwood pressure-impregnated

Minimal space

5,51x4,78x2,20 m

Fall protection netto

7,5 m²

Freefall height

40 cm

Biggest part

100x100x1,5 cm

Heaviest part

23 kg

Foundation level

ET 400

Foundation

9x CF or 3x PFs + 6x PFr

Soil quality

at least lawn

Catalogue index

minimondo Play unit Carnation

Applications

  • Nursery and preschool outdoor play areas

  • Public playgrounds

  • School playgrounds

  • Parks and community spaces

  • Recreational areas for young children

Dimensions

Minimal space 5.51 x 4.78 x 2.20 m

Biggest part 100 x 100 x 1.5 cm

Heaviest part 23 kg

Performance

Freefall height 40 cm

Impact protection area 7.5 m²

Materials

Pressure-impregnated softwood

High-pressure laminate (HPL)

Stainless steel

Polyethylene (PE)

Polypropylene (PP)

Galvanised steel

Makrolon

Installation

Assembly by 2 people in 3 hours

Requires foundations: 9x CF or 3x PFs + 6x PFr

Suitable for installation on lawn

Sustainability

CO2 emissions 449.2 kg

24% renewable raw materials

16% recycled material
