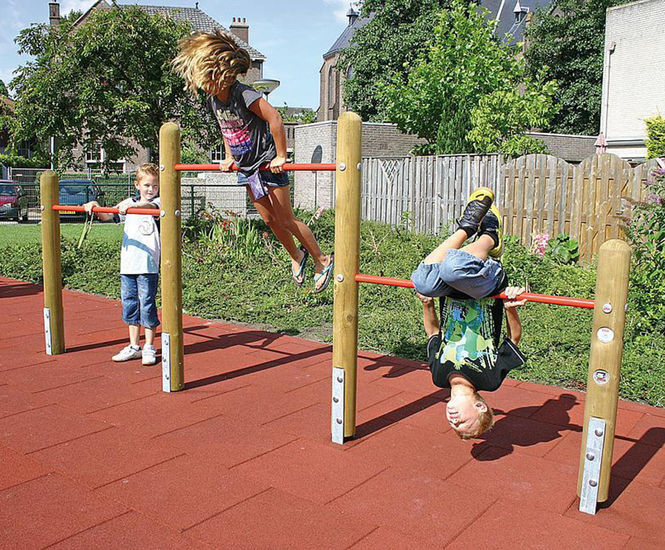

Tri-level horizontal bar Anton is a playground structure made from pressure-impregnated softwood, designed for climbing and play activities. Supplied with galvanised steel post shoes and stainless steel fittings, it supports safe use for children from 3 years. Certified for circularity and sustainability, it is suitable for outdoor installation with a minimum space requirement.

Features and benefits

  • Three horizontal bars at different heights for varied play

  • Made from pressure-impregnated softwood for outdoor durability

  • Includes galvanised steel post shoes and stainless steel fittings

  • Certified for circular product standards and sustainability

  • Suitable for children aged 3 years and above

  • Requires minimal installation space

Applications

  • Playgrounds

  • Parks

  • School outdoor areas

  • Recreational spaces

Technical Data

Material

softwood pressure-impregnated

Minimal space

5,18x3,08x3,03 m

Fall protection netto

14,0 m²

Freefall height

122 cm

Foundation level

ET 700

Foundation

4x CF

Soil quality

at least sand

Catalogue index

playo Tri-level horizontal bars Anton

Physical attributes

Minimum installation space required is 5.18 x 3.08 x 3.03 m. Freefall height is 122 cm. Impact protection area is 14.0 m².

Materials

Made from pressure-impregnated softwood with galvanised steel post shoes and stainless steel fittings.

Installation

Requires two people for assembly, estimated time is two hours. Needs four CF foundations and ground conditions of at least lawn or sand.

Sustainability

h3>

Product CO2 emissions are 268.2 kg. Contains 45% renewable raw materials and 52% recycled material. Certified for circularity by Gesellschaft für Klimaschutz München GmbH.

Accreditations

Certificate: Z2_010651_514_Rev00. Circular Product certification issued May 16, 2024.
