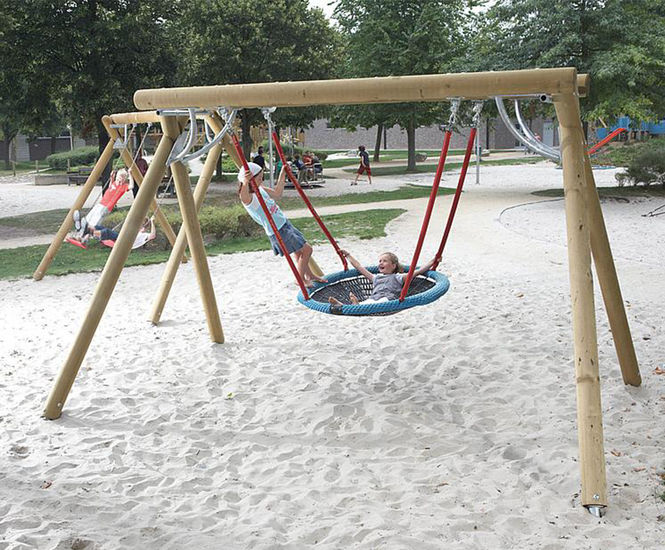

Parallel swinger is an outdoor swing system with a nest seat that moves in a parallelogram motion, keeping the seat parallel to the ground. Made from pressure-impregnated softwood with galvanised steel components, it is designed for group play and suitable for children from 3 years. Includes a 120 cm diameter nest seat with rope ring and steel rope mat.

  • Outdoor swing system with parallelogram motion for a floating sensation

  • Made from pressure-impregnated softwood and galvanised steel for durability

  • Large 120 cm nest seat with rope ring and steel rope link mat

  • Suitable for group play and accessible for children from 3 years

  • Minimal maintenance with weather-resistant materials

  • Certified for safety and circular product standards

Technical specifications

Material

softwood pressure-impregnated

Minimal space

8,60x4,28x3,29 m

Fall protection netto

21,5 m²

Freefall height

153 cm

Biggest part

Ø 16x550 cm

Heaviest part

32 kg

Foundation level

ET 400

Foundation

4x CF or 4x PFs

Soil quality

at least sand

Catalogue index

Parallel swing Swing

Applications

  • Public playgrounds

  • Parks and recreation areas

  • School outdoor spaces

  • Community play areas

  • Inclusive play environments

Dimensions

Minimum space 8.60 x 4.28 x 3.29 m

Nest seat diameter 120 cm

Freefall height 153 cm

Heaviest part 32 kg

Biggest part 16 x 550 cm

Impact protection area 21.5 m²

Materials

Pressure-impregnated softwood

Galvanised steel

Steel rope link mat

Rubber fabric

Polypropylene rope

Installation

Requires 2 people, estimated 4 hours assembly

Foundation: 4x CF or 4x PFs

Ground: at least sand

Accreditations

Certified to Z2_010651_0516_Rev00

Circular Product certification by GKM GmbH

Sustainability

CO2 emissions 538.7 kg

72% renewable raw materials

14% recycled material
