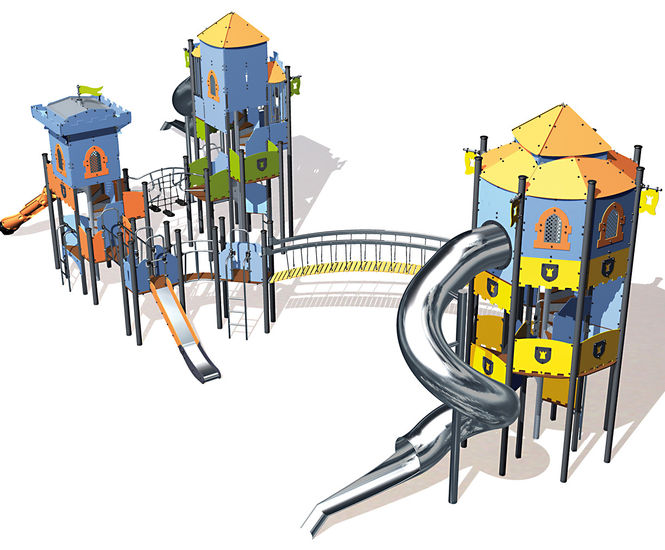

Triple Tower J4703 is a large play structure in the "Medieval" range, designed for children aged 3 and up. Accommodating up to 75 users, it features three towers connected by bridges, multiple slides, climbing elements, and a variety of play activities. Made from weather-resistant HPL panels, galvanised steel posts, stainless steel slides, and non-slip surfaces, it is suitable for high-capacity public play areas.

  • Large multi-tower play structure with slides, bridges, and climbing features
  • Supports up to 75 users simultaneously
  • Includes 50 play functions such as climbing, sliding, role play, and tactile activities
  • Accessible from age 3, with a free fall height of 2.37 m
  • Made from durable materials including HPL, galvanised steel, and stainless steel
  • Certified by an independent laboratory for safety
  • Repairability score of 9.43/10

Applications

  • School playgrounds
  • Public parks
  • Recreational areas
  • Campsites
  • Community spaces

Dimensions

Length 24.61 m

Width 9.21 m

Height 7.20 m

Free fall height 2.37 m

Surface area 186.00 m²

Total weight 7024.93 kg

Heaviest element 700.00 kg

Performance

Repairability 9.43/10

Materials

13 mm HPL panels

95x95 mm and 125 mm diameter painted galvanised steel posts

12.5 mm HPL platforms and steps

40 mm diameter stainless steel tubes

Injection moulded polyamide fixings

Stainless steel tubular slide

Rotomoulded polyethylene kayak slide

2 mm stainless steel sliding surface

Solid wood gangway floor with rubber elements

3 mm perforated aluminium windows

Stainless or plated steel fixings with polyamide caps

Finish

Grained, scratch-resistant surface on steel posts

Non-slip textured platforms and steps

Polyester epoxy lacquer on aluminium windows

Options and variations

Other finishes available (e.g. J4703-P)

Installation

Requires 4 installers

Installation time 70 hours

Concrete volume 9.10 m³

Accreditations

Certified by an independent laboratory
