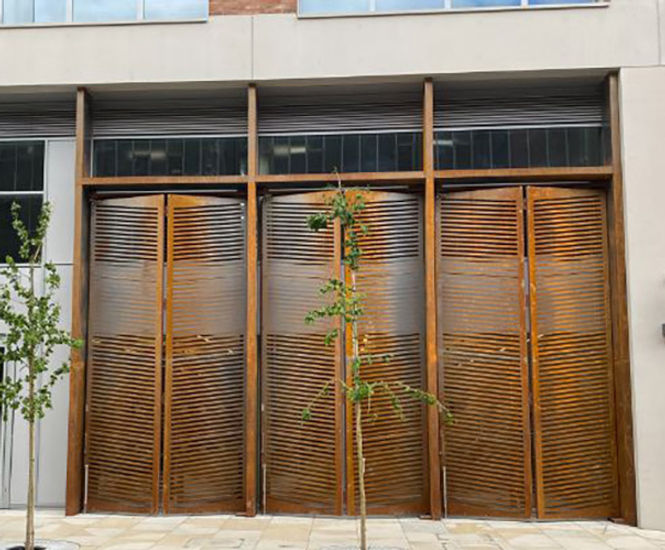

Bi-folding security entrance gates are designed for use on car park entrances. They offer maximum security as well as providing ventilation to allow exhaust fumes to disperse.

Performance characteristics

  • High level of security

  • Natural ventilation

  • Free open area helps disperse gases and aids airflow

Key attributes

  • Provide a high level of security with integral strength and durability

  • Minimal headroom requirements

  • Individually manufactured to suit specific opening sizes; standard design can also be modified to reflect the aesthetic of the surrounding finishes

  • Wide range of electrical control and safety options

Manufacture

  • Galvanised as standard

  • Standard leaf designs

  • Typical leaf designs have a 60x40mm RHS perimeter frame with 25mm-diameter tubes or 25mm SHS uprights at 125mm centres

  • Higher gates have a mid-rail for strengthening

Installation

  • Supported on floor bearings at each side

  • No bottom track required

  • Compact top guide minimises head room

Operation

Electrically-operated by two single-phase motors mounted at the top of each gate. They have a common control panel and open / close / stop push buttons mounted adjacent to the opening.

A choice of control options is offered and disconnection is included for manual operation in the event of an emergency or power failure.

Options

  • Polyester powder coated in a choice of RAL colours

  • Custom designs to suit requirements and complement external building cladding

  • Wicket gates in the main gate or adjacent in a matching fixed section

  • Remote control

  • Photocells

  • Timer closing

  • Loop detectors
