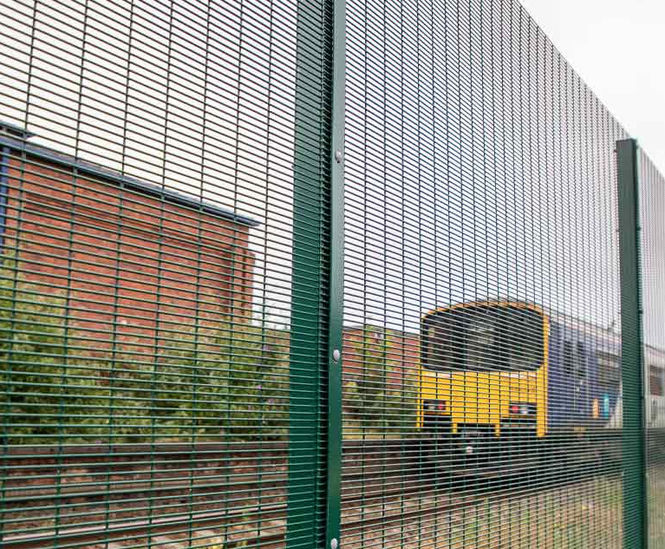

SecureGuard 358 is a rigid steel wire mesh fencing system that is typically specified for high security boundary applications in schools, retail parks, business parks, utility sites, airports and secure units.

The tight mesh aperture hinders climbing and cutting without restricting visibility, making the panels suitable for use with CCTV systems.

Features

  • High-performance welded mesh panel security fencing

  • Tight horizontal mesh

  • Clamp bar fixing

  • Anti-climb and anti-cutting mesh aperture

  • Good through visibility

  • Suitable for use with CCTV systems

  • Conforms to BS 1722 Part 14:2016

Applications

  • Prisons

  • Utilities

  • Mesh industrial fencing

  • Police facilities

  • School security fencing

  • Commercial fencing

  • Ports and airports

Specifications

Fence Height (m)

Panel Size HxW (m)

Wire Diameter HxVxH (mm*)

Post Centres

Post Section (RHS)

1.8

1.8 x 2.515

4

2.44

80×40

2.0

2.0 x 2.515

4

2.44

80×40

2.4

2.4 x 2.515

4

2.44

80×40

3.0

3.0 x 2.515

4

2.44

90×50

Manufacture

Made from 4mm steel wire welded at each intersection to create strong and durable fence panels.

Standard posts are manufactured from rolled hollow section and include stepping provisions to suit on-site conditions. All posts include bolt-through or threaded inserts.

Steel elements are galvanised on-site.

Finishes

Powder-coated finishes to any BS or RAL colour.

State-of-the-art powder-coating facilities on site.

Options

  • Matching gates

  • Double skinned panels

  • Extra length posts

  • Detection systems

  • Electric fencing sytems

Technical support

Design assistance and bespoke manufacture is provided as required.

Barkers can prepare detailed specification documents and provide complete drawings ready to be inserted straight into tender documents and sent to main or sub contractors.

Approved installers in the locality of the project can be recommended from a network of approved contractors.
