Sentry® residential railings

Sentry® residential railings are ideal for town or housing applications, with the 19mm pale giving a contemporary look: standard 1.0m and 1.2m heights;...

Click for full image

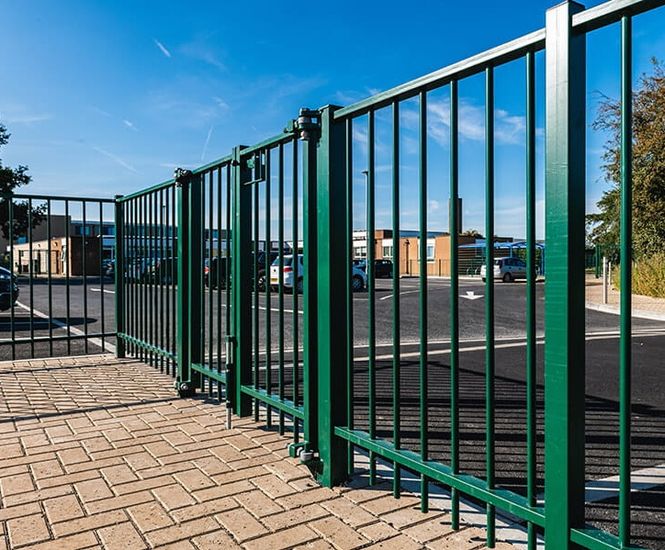

Sentry residential railings

1/12

Features	Flat top Horizontal bars
Material	Mild steel
Suitability	Education Housing Industrial
Dimensions (h x w)	1 or 1.2m heights; 19mm pales; 50x25mm rails; 60x60mm posts

Sentry® residential railings are ideal for town or housing applications, with the 19mm pale giving a contemporary look.

Key features

Standard 1.0m and 1.2m heights; other sizes on request
Option to be base plated
Can be rake and stepped to accommodate ground contours
Galvanised to BS EN 1461 as standard
Galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
Option of other RAL colours available at extra cost
25 year service life guarantee

Sentry® Residential panels have two horizontal rectangular hollow section rails 50 x 25mm at 3m centres. Vertical round hollow sections have a 19mm diameter pales.

Sentry® residential railings are ideal for town or housing applications, with the 19mm pale giving a contemporary look.

Key features

Standard 1.0m and 1.2m heights; other sizes on request
Option to be base plated
Can be rake and stepped to accommodate ground contours
Galvanised to BS EN 1461 as standard
Galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
Option of other RAL colours available at extra cost
25 year service life guarantee

Sentry® Residential panels have two horizontal rectangular hollow section rails 50 x 25mm at 3m centres. Vertical round hollow sections have a 19mm diameter pales.
