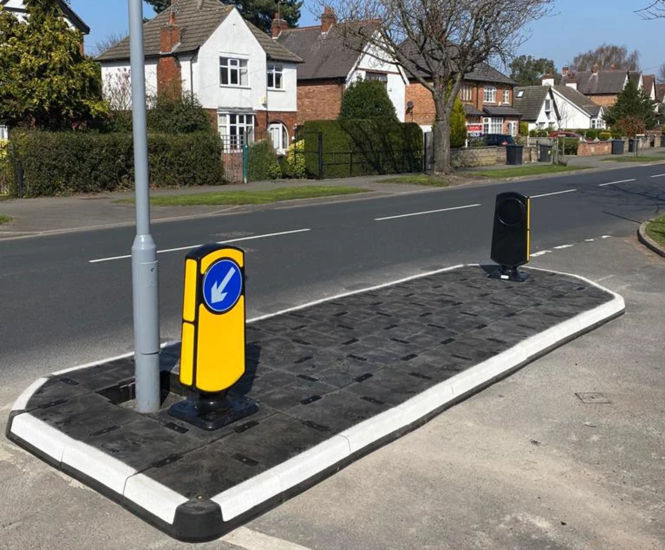

RediPave traffic islands by Rediweld are modular, surface-mounted pedestrian refuge islands made from recycled rubber. Designed for quick installation without excavation, these units come in a range of widths and lengths to suit various road layouts and meet DfT specifications.

  • Modular, surface-mounted traffic and pedestrian islands made from recycled rubber

  • Manually handled and relocatable with no infill required

  • Installed in under one hour, reducing risk to operatives

  • Energy-absorbing design minimises tyre damage

  • Hi-Viz white reflective markings moulded in for visibility

  • Meets DfT specifications

  • Made in the UK from recycled materials

Applications

  • Pedestrian refuge islands

  • Traffic calming schemes

Dimensions

11 modules can be used to build different traffic island shapes.

Module

Height (mm)

Length (mm)

Width (mm)

Weight (kg)

1. Splitter End

125

250

500

14.0

2. Splitter Middle

125

500

500

21.7

3. RediPave Corner

125

500

500

21.9

4. RediPave Edge

125

500

500

21.7

5. RediPave Radius

125

500

500

14.0

6. RediPave Centre

125

500

500

21.5

7. RediPave Left Side

125

600

500

16.0

8. RediPave Bull Nose

125

350

700

14.0

9. RediPave Right Side

125

600

500

16.0

New Modules

Height (mm)

Length (mm)

Width (mm)

Weight (kg)

200mm RediPave Edge

125

500

200

8.80

200mm RediPave Centre

125

500

200

8.80

Materials

Made from recycled rubber

Colours

Black

Granite grey

Installation

Surface mounted and bolt down with no excavation or spoil

Installed in less than one hour for a 1.5 m x 1.5 m island

Manufacture

Made in the UK

Accreditations

Meets DfT specifications

Sustainability

Made from recycled materials
