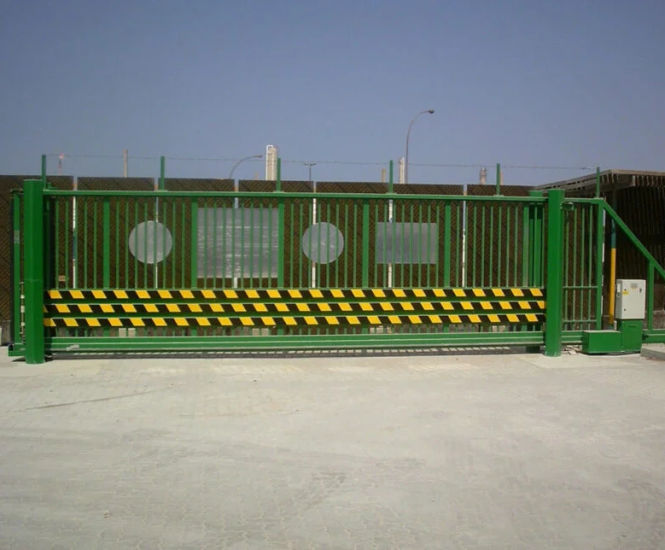

The CSG 10140 sliding cantilevered gate is designed to provide a low cost crash tested sliding gate to prevent hostile vehicle mitigation.

The gate successfully passed the PAS 68:2010 test and achieved the following 3 classifications:

  • Sliding Gate – 3000mm wide x 2400mm high : V/7500[N2]/64/90:1.7/0.0.

  • Sliding Gate – 5000mm wide x 2400mm high : V/7500[N2]/64/90:2.0/0.0.

  • Sliding Gate – 8000mm wide x 2400mm high : V/7500[N2]/64/90:3.0/0.0.

Constructed from regular steel section, this gate can aesthetically blend into its environment.

Requires an installation depth of only 400mm, making it suited to shallow and/or utility congested substructure.

Features:

  • Crash Rated to 40mph - nominal opening available up to 8000mm

  • Operates at low & high weather extremes

  • Manual or automatic controls

  • Ideal for domestic property, gated communities, car parks and warehouses

  • Hand built in the UK

  • Standard height of 1800mm to 3000mm, greater heights possible on application

  • Warranty, service and maintenance available
