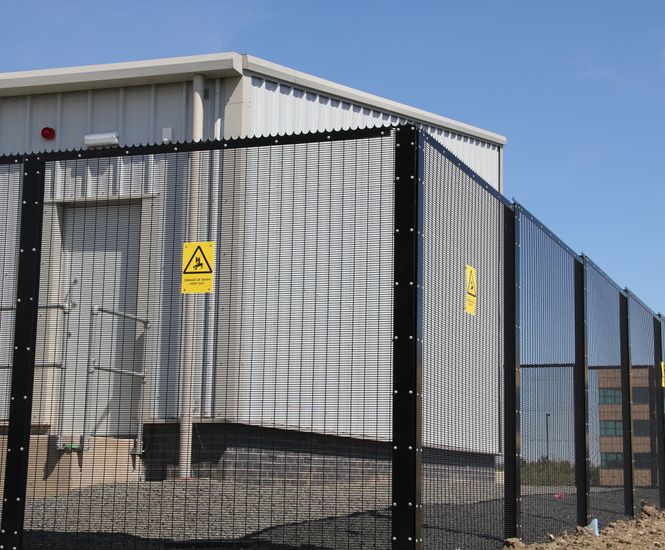

Securus S1™  rigid steel wire mesh panel fencing provides perimeter security for schools, police stations, utility suppliers and airports. The 358 anti-climb mesh fencing panels are fixed to steel posts with a solid clamp bar for added security.

Securus S1 is certified to LPS 1175 A1 (SR1) to withstand basic tool attacks, and is approved for government use.

Security can be enhanced using CLD's anti-intruder barbed or razor wire, cranked or straight, fence toppings.

Features

  • 358 rigid mesh fencing panel

  • 76.2 x 12.5mm mesh apertures

  • 4mm wire diameter

  • LPS 1175 S1

  • Secured by Design

  • Guaranteed minimum 60-second delay against attack

  • Conforms to BS 1722-14 Category 4

  • Approved for Government use – contact CPNI for further information

  • Optional anti-intruder toppings

  • Full range of RAL colours available

  • Upgradable to LPS 1175 B3 (SR2)

Dimensions

Heights
1800 to 5000mm

Panel width
2518mm

Mesh size
76.2 x 12.5mm

Wire diameter
4mm (horizontals and verticals)

Top edge projection
Nil – wire is flush on all edges

Posts
80 x 60mm special flanged section (patent applied for)

Corner posts
80 x 80mm

Post centres
2520mm

Clamping channel
120 x 5mm flat

Finish

CLD's welded steel wire mesh perimeter security fencing panels are galvanised and polyester powder-coated after stringent cleaning and treatment to give a well-adhered coating of 60 microns. They are also available as galvanised only which is a high aluminium content galvanising giving four times the life of BS 443. This finish is free of the sharps and irregularities found in the hot dip galvanising process.

Applications

  • Schools

  • Ministry of Defence sites

  • Police station

  • Secure units

  • Airports and seaports

  • Utility suppliers

Accreditation

  • Conforms to BS 1722-14 Category 4 for extra high security fences over 3m

  • Certification to LPS 1175 A1 (SR1), with the ability to upgrade to B3

  • Secured by Design
