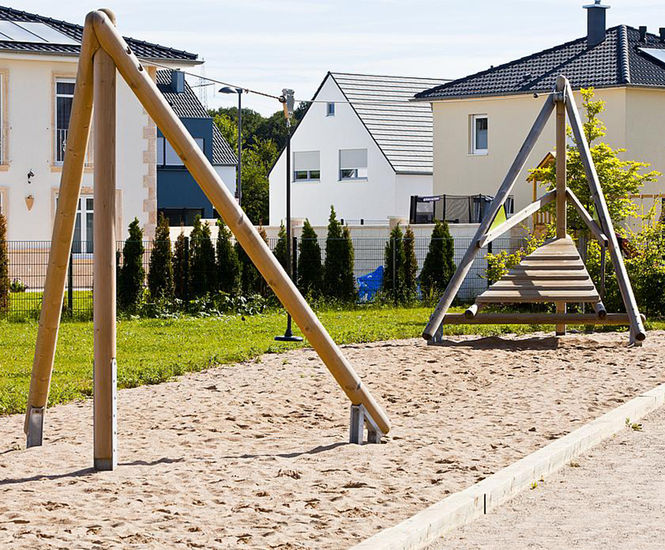

Aerial cableway Sierra 20 m is a pendulum-style cableway system for outdoor play, made from pressure-impregnated softwood and galvanised steel, with a 20 m steel cable and automatic braking carriage. Designed for level terrain, it includes a starting platform and safety-tested components.

  • Pendulum-style cableway system for playgrounds and outdoor spaces

  • Automatic brake in carriage, released by user’s weight

  • Easy cable tensioning with rope drum

  • No ground modelling needed due to starting platform

  • Includes seat, buffer springs, and face plates for safety and comfort

  • Pressure-impregnated softwood and galvanised steel construction

  • Certified to TÜV and EN1176 standards

Technical specifications

Material

softwood pressure-impregnated

Minimal space

22,00x4,99x3,92 m

Fall protection netto

75,5 m²

Freefall height

146 cm

Biggest part

Ø 16x532 cm

Heaviest part

100 kg

Foundation level

ET 800

Foundation

6x CF

Soil quality

at least sand

Catalogue index

Aerial cableway

Applications

  • Public playgrounds

  • Parks and recreation areas

  • School outdoor spaces

  • Adventure and activity centres

  • Community play areas

Dimensions

Minimum space 22.00 x 4.99 x 3.92 m

Freefall height 146 cm

Impact protection area 75.5 m²

Biggest part diameter 16 x 532 cm

Heaviest part 100 kg

Performance

Automatic brake in carriage

Freefall height 146 cm

Materials

Pressure-impregnated softwood

Galvanised steel

Stainless steel carriage

Steel rope cable

Rubber seat

High-pressure laminate face plates

Installation

Assembly by 3 people in 5 hours

Requires 6 concrete foundations

Suitable for installation on lawn or sand

Accreditations

TÜV product service

EN1176 certified

Sustainability

CO2 emissions 1393.6 kg

77% renewable raw materials

20% recycled material
