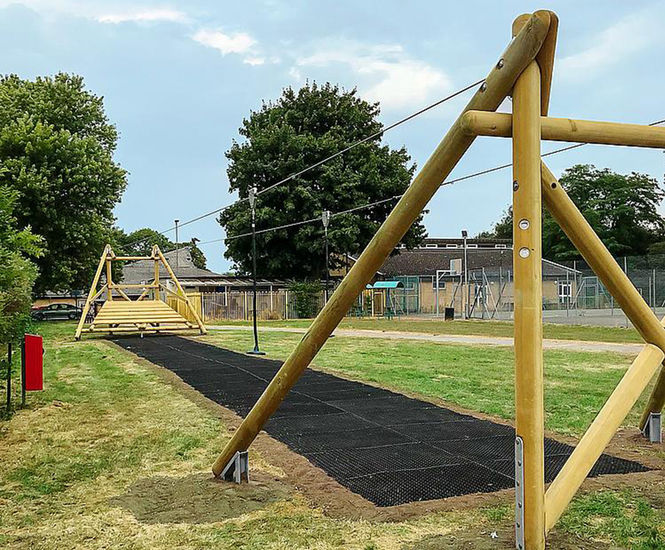

Aerial cableway Sierra Duo 20 m is a dual zip line system for side-by-side or competitive play, made from pressure-impregnated softwood and larch with galvanised steel and stainless steel components. Designed for outdoor use, it includes a starting platform, automatic braking carriage, and simple cable re-tensioning by rope drum.

  • Dual cableway system for simultaneous use or racing

  • Automatic brake in carriage released by user’s weight

  • Starting platform eliminates need for ground shaping

  • Simple cable re-tensioning with rope drum

  • Pressure-impregnated softwood and larch for durability

  • Stainless steel and galvanised steel hardware

  • Safety-tested with TÜV certification

Technical specifications

Material

softwood pressure-impregnated

Minimal space

22,00x7,00x4,00 m

Fall protection netto

125,0 m²

Freefall height

146 cm

Biggest part

Ø 16x532 cm

Heaviest part

100 kg

Foundation level

ET 800

Foundation

8x CF

Soil quality

at least sand

Catalogue index

Aerial cableway

Applications

  • Playgrounds

  • Parks and recreation areas

  • School outdoor spaces

  • Adventure and activity centres

  • Public open spaces

Dimensions

Minimum space 22.00 x 7.00 x 4.00 m

Freefall height 146 cm

Biggest part diameter 16 x 532 cm

Heaviest part 100 kg

Impact protection net area 125.0 m²

Performance

Recommended age group from 3 years

Assembly 3 persons / 7 hours

Materials

Pressure-impregnated softwood

Larch (natural, glulam, GL green)

Galvanised steel

Stainless steel

Rubber (seats)

High-pressure laminate (face plates)

Installation

Requires 8 concrete foundations (CF)

Suitable for soil quality at least sand or lawn

Post shoes and anchor fixings in galvanised steel

Accreditations

TÜV product service certified

EN1176 certified

Sustainability

CO2 emissions 2197.1 kg

82% renewable raw materials

16% recycled material
