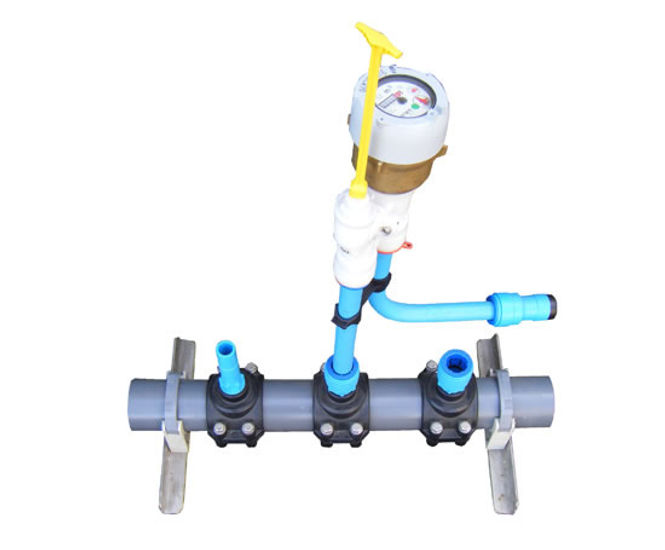

SENATE meter box: multiport manifold system
Overview of Sewacos SENATE multiport manifold system: Minimum chamber size 600x400mm. Manifold accepts all 11/2 inch BSP bottom entry meters. Tough acetal copolymer manifold designed to reduce head loss. Fitted with Watts Ocean check-valve tested to 10 bar. Second check-valve can be added on the inlet feed side. Light action stop valve supplied
Overview of Sewacos SENATE multiport manifold system: • Minimum chamber size 600x400mm. • Manifold accepts all 11/2 inch BSP bottom entry meters. • Tough acetal copolymer manifold designed to reduce head loss. • Fitted with Watts Ocean check-valve tested to 10 bar. • Second check-valve can be added on the inlet feed side. • Light action stop valve supplied with torque-limiting handle to prevent over stressing. • The system can be fitted on a wide range of service; main pipe sizes 90, 110 or 160mm, standard options. • Manifold service connections available as 25mm MDPE sapphire push-fit couplings. • The meter unit can be serviced without excavation or special tools. • Manufactured in the UK in accordance with ISO 9001 quality principles.
