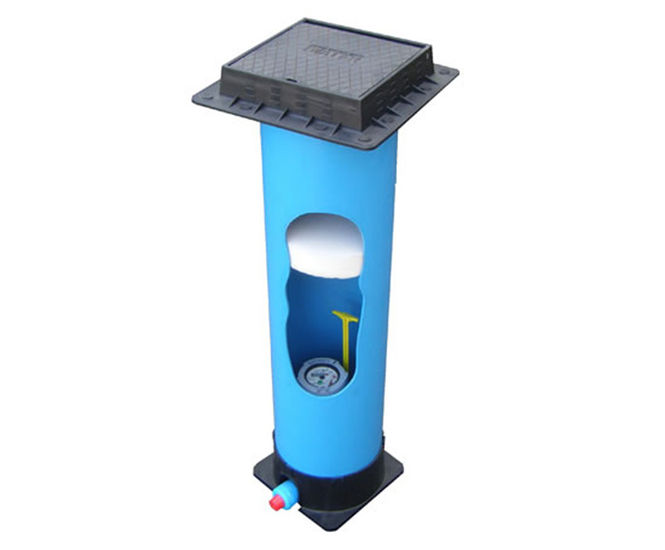

Key features and benefits of Sewaco's SENATE 200 UK meter box system:

  • Simple, low-cost design.
  • 200mm diameter guard tube of variable length between 500 and 1000mm to suit application.
  • Optional MBS top hat gives simple height and camber adjustments.
  • Accepts all standard cast iron or plastic surface boxes.
  • Manifold accepts all bottom entry meters.
  • Tough acetal copolymer manifold designed to reduce head loss.
  • Incorporates meter/sampling point and non-return valve.
  • Light action stop valve supplied with torque-limiting handle to prevent over stressing.
  • Manifold service pipe connections available as 25mm MDPE sapphire push-fit couplings.
  • Meter unit can be serviced without excavation or special tools.
  • Robust assembly withstands heavy wheel loads.
  • Manufactured in the UK in accordance with ISO 9001 quality principles.
