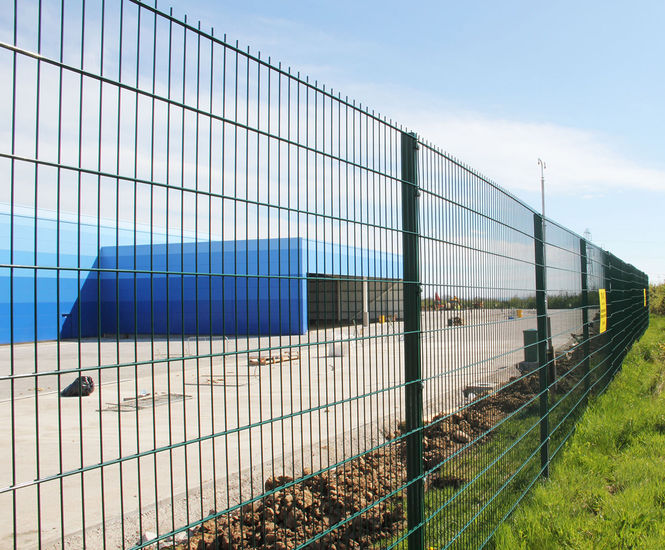

Dulok-Lite™ double wire flat panel fencing system

System type

Rigid mesh systems

Product accreditation

BS 1722-14
Secured by Design

Overall height

1.83, 2.03, 2.43m

Panel width

2506mm

Aperture size (h x w)

200x50mm

Wire / bar / pale size

5mm (verticals); 2 x 6mm (horizontals)

Post centres

2520mm

Post sections

60x40mm

The Dulok-Lite™ double wire flat panel fence provides anti-cut-through perimeter protection. It conforms to BS1722: Part 14.

CLD's entry level Double Wire Rigid Mesh System comes with clip fixings rather than a full length clamp bar and 656 Double Wire Mesh panels, making it the most cost effective system for large commercial fencing projects where rigid panels are required.

The perfect example of a true multi-use fencing system, the Dulok-Lite™ double wire panel system is suitable anywhere you need anti-cut-through protection. Designed for Commercial Fencing projects it is also suitable for school playgrounds, retail premises, business parks, public buildings and secure car parks.

Dulok-Lite™ is manufactured from twin 6mm diameter horizontal wires either side of 5mm diameter vertical wires, providing an excellent defence against vandals and intruders.

Panels are fixed to steel posts using metal clips with tamper-proof angled returns, which are secured in place with pin hex screws for added security. And if you need even more protection, Dulok-Lite™ is available in a Secured by Design option – Dulok-6 SR1.

Dulok-Lite™panels are made from twin 6mm diameter horizontal wires attached either side of a 5mm diameter vertical wire. They create a strong rigid fence when fitted to a RHS post.

Dulok-Lite™ fencing uses a post and clip system, which provides a simple method of securing. Posts are supplied with between 5 and 7 individual clips (depending upon height), which are fixed into place using an M8x40 pin hex security bolt secured into a threaded insert.

Dimensions

Heights
630, 830, 1030, 1230, 1430, 1630, 1830, 2030, 2430, 2660, 2860, 3030, 3460, 3660, 3860, 4060mm

Panel Width
2506mm

Mesh Size
200 x 50mm

Wire Diameter
5mm verticals and twin 6mm horizontals

Top Edge Projection
30mm (Can be inverted for flush edges)

Posts
60 x 40mm to 80 x 40mm RHS dependant on height

Clips
47 x 25mm steel

Post Centres
2520mm

Applications

Commercial Fencing
School playgrounds
Public buildings
Schools
Car parks
Business parks and retail premises

Finishes

Galvanised and polyester powder-coated, after stringent cleaning and treatment, to give a well adhered coating of a minimum of 60 microns. The full RAL range of colours available.

Features

Anti-cut-through, double wire mesh panels
Wide range of height options
Range of wire mesh sizes
RAL colours available
200 x 50mm Mesh Apertures
Designed for Commercial Fencing Projects
Twin 6mm Horizontal Mesh Wires
Nominal 5mm Vertical Mesh Wire
Economic security solution
Anti-vandal fasteners
Strong cut 656 resistant double wire panels
3m panel height available
Conforms to BS 1722-14 for open mesh steel panel fences

Sloping ground

Panels can be stepped as required. Where gradients exceed 1:16, it is recommended that taller panels are either part-buried or additional posts are used.
