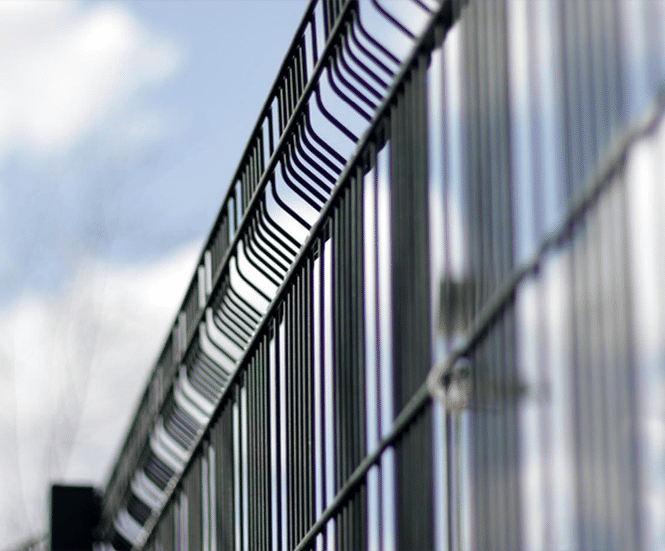

Offering a paladin style variable aperture mesh panel system that is both difficult to cut through and climb, the Multiplus™ profiled rigid mesh panel system is the next step in perimeter security solutions.

The welded steel wire mesh panels feature large upper profiles for extra strength and groups of 6 wires at 25mm wire centres followed by 45mm mesh apertures. This ever-popular decorative effect gives your fencing a uniquely stylish ‘striped’ appearance and offers increased security for your fence line.

Multiplus™ looks great around public buildings, schools, retail premises and industrial buildings. Featuring steel security clips and hex bolts fastening each panel to the galvanised 60 x 40mm RHS steel posts, this fencing system is built to last.

Multiplus™ conforms to BS 1722-14 for open mesh steel panel fences, providing excellent quality assurances and is covered by our 15 year guarantee.

Construction

The welded steel wire mesh panels feature large upper profiles for extra strength and groups of 6 wires with 45mm gaps. This decorative effect gives the fencing a ‘striped’ appearance and makes panels extremely difficult to both cut through and climb.

This system conforms to BS 1722-14 for open mesh steel panel fences, providing excellent quality assurances.

Installation

Multiplus™ uses a standard post and clip system, which helps in installation and allows stepping of panels. Panels can be removed without damage to either post or clip. Accidentally damaged panels can be replaced without removing the post.

Features

  • Aesthetic appearance
  • Popular decorative effect
  • Difficult to climb
  • RAL colours available
  • Paladin Style Variable V Mesh Pattern
  • Full range of RAL colours available

Dimensions

Heights
1800, 2000, 2400, 3000mm

Panel Width
3000mm

Mesh Size
200 x 45mm (200 x 25mm variable)

Wire Diameter
4mm vertical and 6mm horizontal

Profiles
3

Top Edge Projection
Nil wire is flush on all edges

Posts
60 x 40mm RHS (up to 2400mm) 80 x 40mm RHS (3000mm)

Clips
47 x 25 x 3mm

Post Centres
3010mm

Finish

Our welded steel wire mesh, perimeter security fencing panels are galvanised and polyester powder-coated, after stringent cleaning and treatment, to give a well adhered coating of 60 microns. RAL range of colours available.

Applications

  • Public buildings
  • Schools
  • Industrial buildings
  • Car parks

Sloping ground

Panels can be stepped as required. Where gradients exceed 1:20 or 1:16, it is recommended that taller panels are either part-buried or additional posts are used

Variations

In addition to the standard posts many variations are available to accommodate site requirements:

  • Alternative sections
  • Wall fixing plates, cranked posts or base plated
  • Cranked or straight extensions for barbed or razor wire
  • Cranked panels
