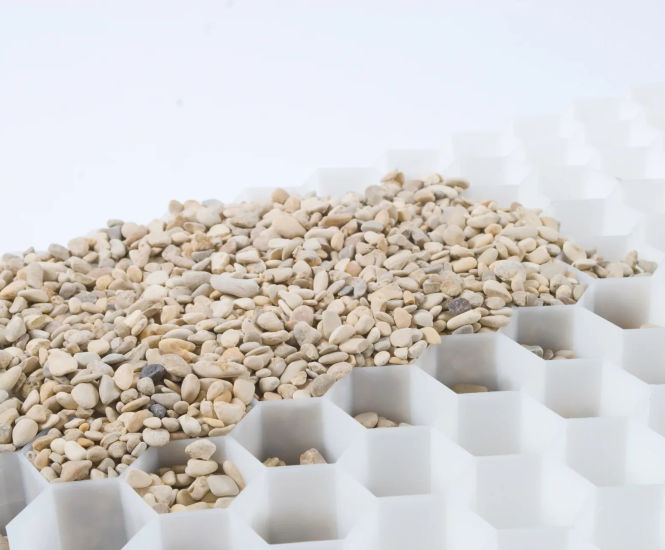

CORE DRIVE is a permeable paving system made from a closed-cell, honeycomb-shaped grid with a heat-welded membrane. It is designed to stabilise gravel for driveways and parking areas while reducing gravel movement and rutting.

  • Permeable grid system for stabilising gravel on driveways and parking areas

  • Closed cell design with integrated heat-welded membrane

  • Reduces gravel usage by up to 60%

  • Suitable for gradients up to 1 in 5

  • Virtually invisible after installation

  • SuDS and DDA compliant

  • 15 year guarantee when installed to specification

Applications

Residential driveways

Commercial parking areas

Shared drives and mews courts

Small car parks

Sloped driveways

Overlaying existing surfaces

Options and variations

Range

CORE DRIVE 40-30

Our most popular product, this grid withstands over 450tn/m², making it more than capable for domestic driveways, supporting all of the traffic you’d expect, including removal vans, emergency services and delivery vehicles.

The grid has a high quality weed membrane heat-welded to the underside of the grid – which prevents weed growth, but also prevents aggregate from slipping throught cells... forming the closed-cell design that has now been adopted as the benchmark for gravel stabilisation. Older, open-cell designs are prone to issues like grid lift. The product is also DDA compliant and SuDS compliant (completely porous).

This product is suitable for slopes up to 1 in 5 (20%)

It is the most cost-effective gravel grid within our range.

Sheet size 1600x1200mm

CORE DRIVE 40-40

Best suited for small commercial car parks or compact on-and-off driveways with tight, repetitive vehicle movements. Its enhanced torsion strength ensures durability in high-stress areas.

This product is suitable for slopes up to 1 in 5 (20%)

Sheet size 1600x1200mm

CORE DRIVE 50-35 HD

CORE DRIVE 50-35 HD is designed for larger shared driveways. It can be used on gradients up to 20%, features preformed pinning-holes and has a thicker cell wall for additional strength.

Small sheet 1150 x 800mm
Large sheet 2400 x 1150mm

Performance

Reduces gravel movement, ruts, dips, puddles, and potholes

Designed for different traffic types and site conditions

Installation

Easy to install, can be cut or shaped for curves and borders

Can be used for new driveways or over existing surfaces

Warranty

15 year guarantee when installed to specification

Sustainability

Eco-friendly, permeable for sustainable drainage (SuDS compliant)
