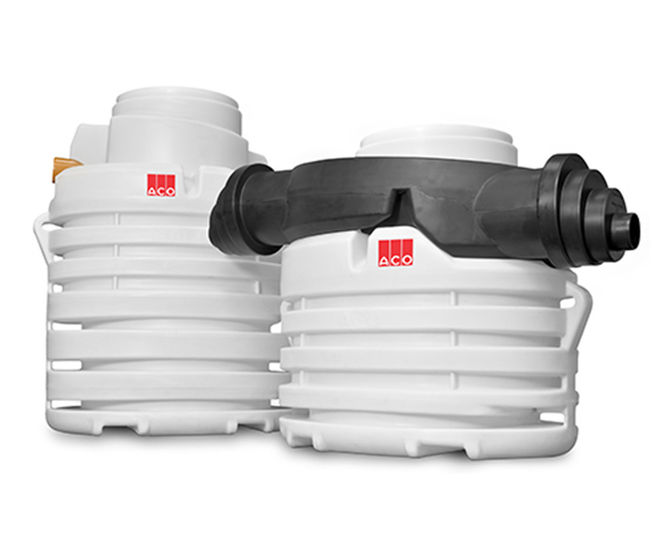

Bypass separators are used when it is acceptable not to fully treat high flows, typically in areas where there is a small risk of spillage, such as short stay car parks.

The separator treats all flows generated by rainfall rates of up to 6.5mm/h.

High flows above this level are allowed to bypass the separator.

Features

  • Compliant with the Environment Agency’s PPG3 guidelines

  • Environment Agency verified manufacturer

  • Independently certified range of sizes to BS EN 858-1 and BS EN 858-2

  • Robust polyethylene construction for long service life and improved durability over GRP units

  • Compact vertical design for ease of handling, installation and maintenance

  • Maintenance friendly design, for simple operation and excellent accessibility

  • In-chamber sampling capability removes the need for expensive separate sampling chambers

  • Full range of quality oil, silt and high level alarm systems

  • Contractor friendly inlet and outlet connections on bypass unit

  • Light weight polyethylene extension shaft, easy to handle and install

  • High flow rate bypass separator for peak flows from 30 to 100 l/s

Benefits

  • Class 1 and 2, full retention and bypass separators

  • Full retention separator for peak flows from 3 to 10 l/s

  • Compact design reduces excavation and installation costs

  • Highly durable polyethylene body, less prone to damage than GRP units

  • Coalescing filter located for simple removal and maintenance. Unit can be cleaned by normal water pressure

  • Large diameter opening for easy maintenance access

  • Connection for optional sampling pump which obviates the need for separate and expensive sampling chambers

  • Extension shaft Ø716mm available

  • Minimum working capacity of 1000 litres excluding silt complies fully with PPG3

  • Flat base for stability during installation and levelling with integrated lifting slots for forks

  • Bypass inlet and outlet connections accept 160mm PVC-U, 225mm, 300mm and 375mm twinwall or clay pipe work

Applications

  • Car parking

  • HGV parking

  • Light industrial

  • Heavy industrial

  • Distribution yards

  • Airport (airside)

  • Port and dock sides

  • Security areas

  • SuDs

Not suitable for

  • Threshold drainage

  • Petrol station forecourts

  • Domestic and public landscaping

  • Public highways
