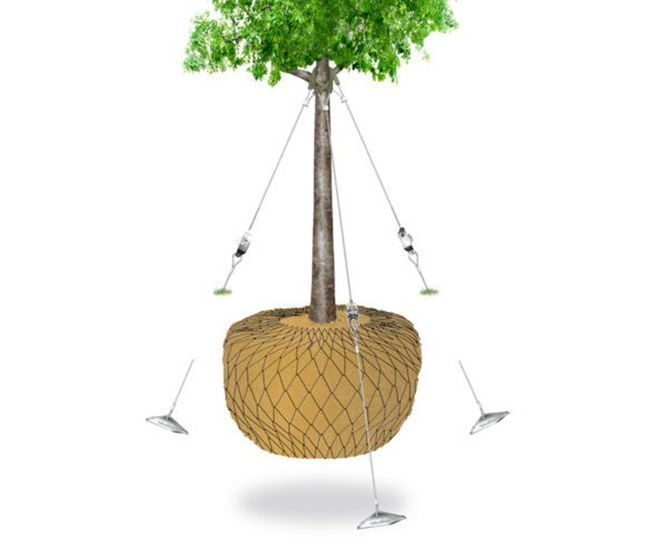

Guy fixing kits are available in a range of sizes to suit most high quality tree transplants up to 20m high. These kits are fast and easy to install, offer effective support for trees in highly exposed areas and for trees which require correction against leaning.

A simple drive rod and tension lever is required for installation although powered machinery is recommended for multiple installations and for G3 / G4 kits. We are happy to recommend kits for particular applications and soil conditions.

G1 (Suitable for Tree sizes - 2.5 - 4.5m, 12 - 25cm)

  • 3 x Collar, clip and wire assemblies (length 6m)
  • 3 x S41 anchors attached to ratchet tensioners
  • 3 x Tensioner shrouds

G2 (Suitable for Tree sizes - 4.5 - 7.5m, 25 - 45cm)

  • 3 x Collar, clip and wire assemblies (length 8m)
  • 3 x S61 anchors attached to ratchet tensioners
  • 3 x Tensioner shrouds

G3 (Suitable for Tree sizes -7.5 - 12m, 45 - 75cm)

  • 3 x Collar, clip and wire assemblies (length 12m)
  • 3 x S81 anchors attached to ratchet tensioners
  • 3 x Tensioner shrouds

G4 (Suitable for Tree sizes - 12m+, 75cm+)

  • 3 x Collar, clip and wire assemblies (length 12m)
  • 3 x B41 anchors attached to ratchet tensioners
  • 3 x Tensioner shrouds
