Format Pavers
Max. loading HGV
Functions Gravel stabilisation
Turf reinforcement
Suitability Driveways
Temporary car parks
Material Low density polyethylene
Colours Black
Dimensions (l x w x d) 580x390x40mm
Weight (kg/m2) 4.3

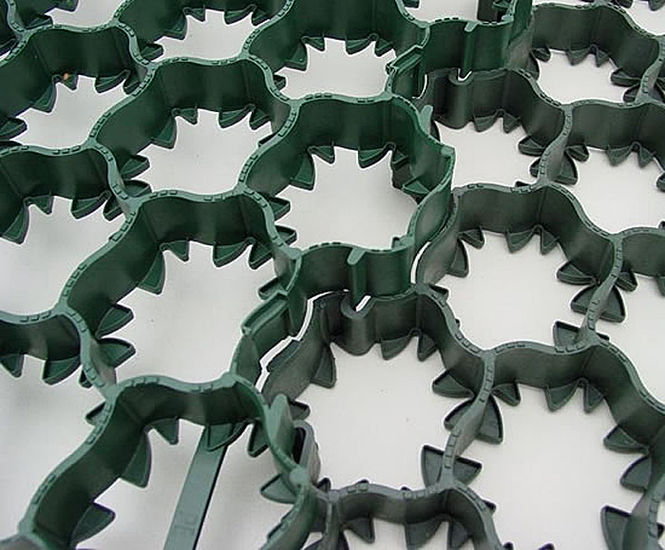

Park40 low density polyethylene (LDP) ground reinforcement tiles are recommended for gravel driveways subject to heavy traffic, overspill car parking, event parking, caravan parks and lawn and back reinforcement applications.

The low density polyethylene they are constructed from is 100% recycled and can withstand frost and UV radiation. It is naturally stable and can resist exteme temperatures ranging from -30-85ºC.

Park40 LDP ground reinforcement tiles have a lifespan of more than 10 years.

  • Weight handling: up to 1000 t/m2 (filled)
  • Size: 390 x 581 x 40mm
  • Detail: 54 honeycombs 7 x 7cm per tile
  • Wall thickness: 0.25 cm
  • Weight: 1kg tile

Material

Low density polyethylene (LDP), 100% recycled, withstands frost and UV radiation, natural stability, resists extreme temperatures –30 to 85°C

Data

Infiltration rate: >5000mm/hour
Run-off coefficient range: 0.05-0.25
Lateral drainage void ratio: 20.8%
Infill surface area: >90%

Certification

  • DIN 38412 - Neutral for the environment, lifespan higher that 10 years
  • DIN 4102 - Approval emergency access routes, fire resistance
  • DIN IN ISO 124 and B125 - Approval for car parks, access roads and storage areas
  • CE Marked


Park40 low density polyethylene (LDP) ground reinforcement tiles are recommended for gravel driveways subject to heavy traffic, overspill car parking, event parking, caravan parks and lawn and back reinforcement applications.

The low density polyethylene they are constructed from is 100% recycled and can withstand frost and UV radiation. It is naturally stable and can resist exteme temperatures ranging from -30-85ºC.

Park40 LDP ground reinforcement tiles have a lifespan of more than 10 years.

  • Weight handling: up to 1000 t/m2 (filled)
  • Size: 390 x 581 x 40mm
  • Detail: 54 honeycombs 7 x 7cm per tile
  • Wall thickness: 0.25 cm
  • Weight: 1kg tile

Material

Low density polyethylene (LDP), 100% recycled, withstands frost and UV radiation, natural stability, resists extreme temperatures –30 to 85°C

Data

Infiltration rate: >5000mm/hour
Run-off coefficient range: 0.05-0.25
Lateral drainage void ratio: 20.8%
Infill surface area: >90%

Certification

  • DIN 38412 - Neutral for the environment, lifespan higher that 10 years
  • DIN 4102 - Approval emergency access routes, fire resistance
  • DIN IN ISO 124 and B125 - Approval for car parks, access roads and storage areas
  • CE Marked
