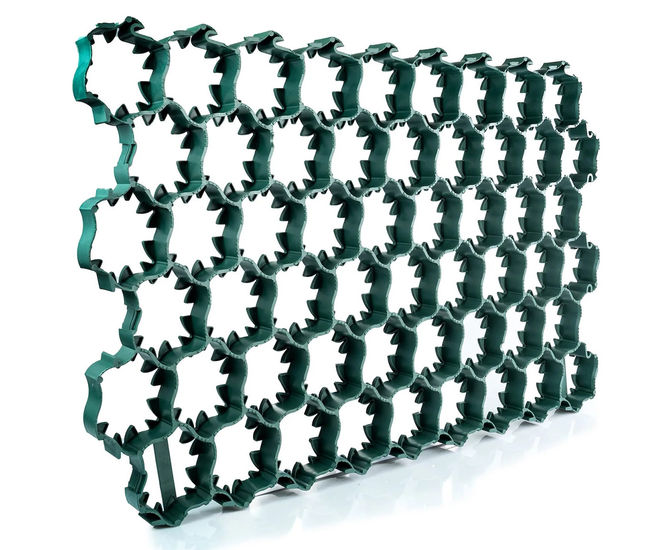

Park30 low-density polyethylene (LDP) ground reinforcement tiles are recommended for gravel driveways subject to light traffic, overspill car parks and event parking, pathways, caravan parks, shed bases and lawn reinforcement.

The low-density polyethylene they are constructed from is 100% recycled and can withstand frost and UV radiation. It is naturally stable and can resist extreme temperatures ranging from -30 to 85ºC.

Park30 LDP ground reinforcement tiles have a lifespan of more than 10 years.

Specification

  • Size: 390 x 580 x 30mm

  • Detail: 54 honeycombs of 70 x 70mm per tile

  • Wall thickness: 2.5mm

  • Weight: 0.75kg per tile

  • Weight handling: up to 200 tonne/m2

Product data

  • Infiltration rate: >5000mm/hour

  • Run-off coefficient range: 0.05-0.25

  • Lateral drainage void ratio: 20.8%

  • Infill surface area: >90%

Material

Low-density polyethylene (LDP), 100% recycled, withstands frost and UV radiation, natural stability, resists extreme temperatures –30 to 85°C.

Certifications

  • DIN 38412 - Neutral for the environment, lifespan higher that 10 years

  • DIN 4102 - Approval emergency access routes, fire resistance

  • DIN IN ISO 124 and B125 - Approval for car parks, access roads and storage areas
