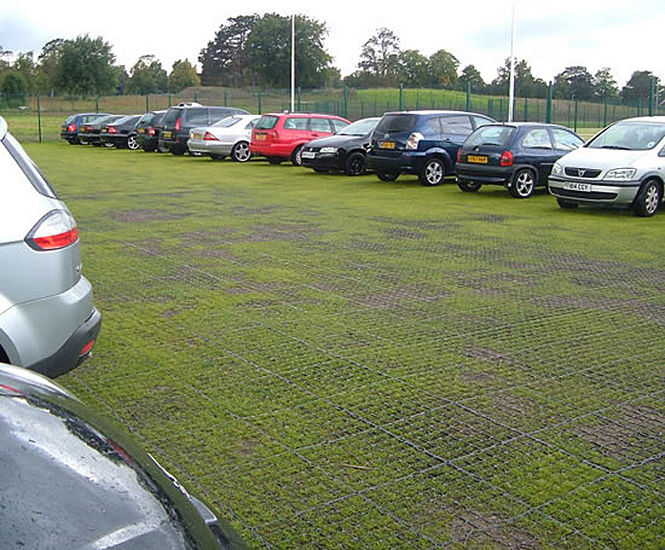

GF50 ground reinforcement tiles are recommended for use with soil and grass seed for car parks, road extensions, driveways, emergency access routes, storage areas, footpaths, walkways, bank reinforcement and ground strengthening in landscaping.

The low-density polyethylene they are constructed from is 100% recycled and can withstand frost and UV radiation. It is naturally stable and can resist extreme temperatures ranging from -30 to 85ºC.

GF50 low-density polyethylene ground reinforcement tiles have a lifespan of more than 10 years.

  • Weight handling: up to 1000 t/m2 (filled)

  • Size: 500 x 500 x 50mm

  • Detail: 49 cells of 70 x 70mm per tile

  • Wall thickness: 3mm

  • Weight: 1.6kg per tile

  • Black or green

Material

Low-density polyethylene (LDP); 100% recycled; withstands frost and UV radiation; natural stability; resists extreme temperatures –30 to 85°C.

Data

  • Infiltration rate: >5000mm / hour

  • Run-off coefficient range: 0.05-0.25

  • Lateral drainage void ratio: 20.8%

  • Infill surface area: >90%

Certifications

  • DIN 38412 - Neutral for the environment, lifespan higher that 10 years

  • DIN 4102 - Approval for emergency access routes, fire resistance

  • DIN 1072 - Approval for 20 tonne axle load, driveways, road extensions, bridges

  • DIN IN ISO 124 and B125 - Approval for car parks, access roads and storage areas

  • CE Marked
