Format Pavers
Max. loading Lorries / buses
Functions Gravel stabilisation
Turf reinforcement
Suitability Driveways
Equestrian areas
Fire access routes
Material Low density polyethylene
Colours Black; green
Dimensions (l x w x d) 500 x 500 x 40mm
Weight (kg/m2) 5.6

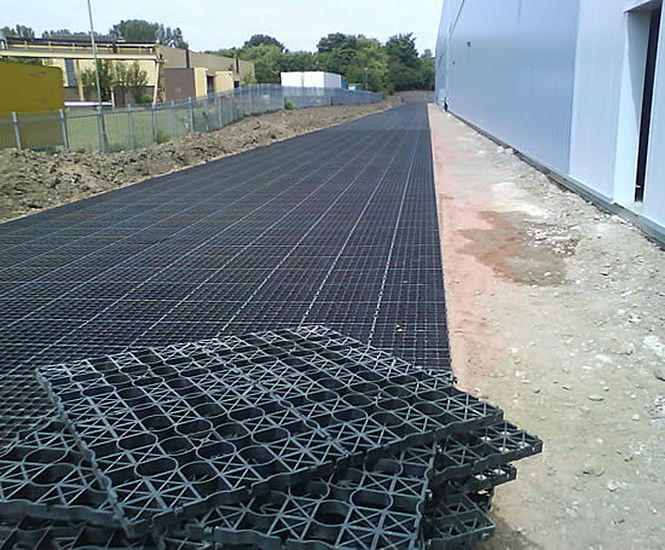

GF40 low-density polyethylene ground reinforcement tiles from Gridforce are recommended for use with aggregates or soil and grass seed for car parks, road extensions, driveways, emergency access routes, storage areas, footpaths and walkways.

Features and benefits

  • Low-density polyethylene
  • 100% recycled
  • Can withstand frost and UV radiation
  • Naturally stable
  • Can resist extreme temperatures ranging from -30 to 85ºC
  • Lifespan of more than 10 years

Product data

  • Infiltration rate >5000mm/hour
  • Run-off coefficient range 0.05-0.25
  • Lateral drainage void ratio 20.8%
  • Infill surface area >90%

Certifications

  • DIN 38412 - Neutral for the environment, lifespan higher that 10 years
  • DIN 4102 - Approval emergency access routes, fire resistance
  • DIN 1072 - Approval for 20 tonne axle load, driveways, road extensions, bridges
  • DIN IN ISO 124 and B125 - Approval for car parks, access roads & storage areas


GF40 low-density polyethylene ground reinforcement tiles from Gridforce are recommended for use with aggregates or soil and grass seed for car parks, road extensions, driveways, emergency access routes, storage areas, footpaths and walkways.

Features and benefits

  • Low-density polyethylene
  • 100% recycled
  • Can withstand frost and UV radiation
  • Naturally stable
  • Can resist extreme temperatures ranging from -30 to 85ºC
  • Lifespan of more than 10 years

Product data

  • Infiltration rate >5000mm/hour
  • Run-off coefficient range 0.05-0.25
  • Lateral drainage void ratio 20.8%
  • Infill surface area >90%

Certifications

  • DIN 38412 - Neutral for the environment, lifespan higher that 10 years
  • DIN 4102 - Approval emergency access routes, fire resistance
  • DIN 1072 - Approval for 20 tonne axle load, driveways, road extensions, bridges
  • DIN IN ISO 124 and B125 - Approval for car parks, access roads & storage areas
