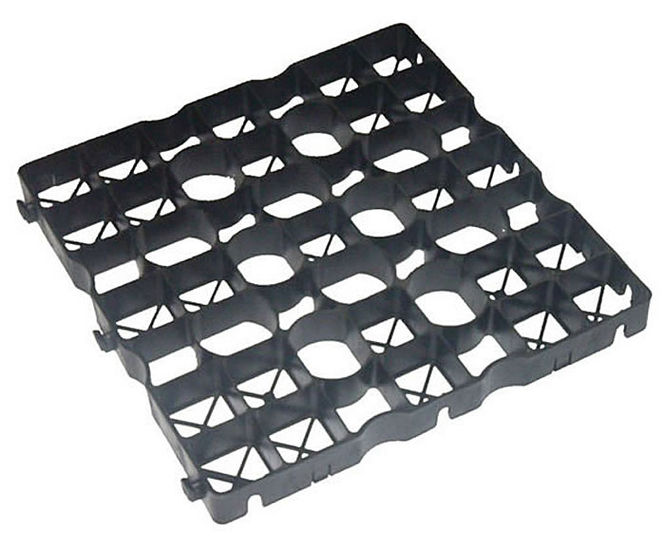

GF30 low density polyethylene ground reinforcement tiles are recommended for use with gravel and aggregates for car parks, road extensions, driveways emergency access routes, storage areas, footpaths and walkways.

The low density polyethylene they are constructed from is 100% recycled and can withstand frost and UV radiation. It is naturally stable and can resist exteme temperatures ranging from -30-85ºC.

GF30 low density polyethylene ground reinforcement tiles have a lifespan of more than 10 years.

  • Weight handling: up to 1000 t/m2 (filled)
  • Size: 500 x 500 x 30mm
  • Detail: 49 cells of 70 x 70mm per tile
  • Wall thickness: 3mm
  • Weight: 1.1kg per tile

Material

Low density polyethylene (LDP, 100% recycled, withstands frost and UV radiation, natural stability, resists extreme temperatures –30 to 85°C

Data

  • Infiltration rate: >5000mm/hour
  • Run-off coefficient range: 0.05-0.25
  • Lateral drainage void ratio: 20.8%
  • Infill surface area: >90%

Certifications

  • DIN 38412 - Neutral for the environment, lifespan higher that 10 years
  • DIN 4102 - Approval emergency access routes, fire resistance
  • DIN 1072 - Approval for 20 tonne axle load, driveways, road extensions, bridges
  • DIN IN ISO 124 and B125 - Approval for car parks, access roads and storage areas
  • CE Marked
