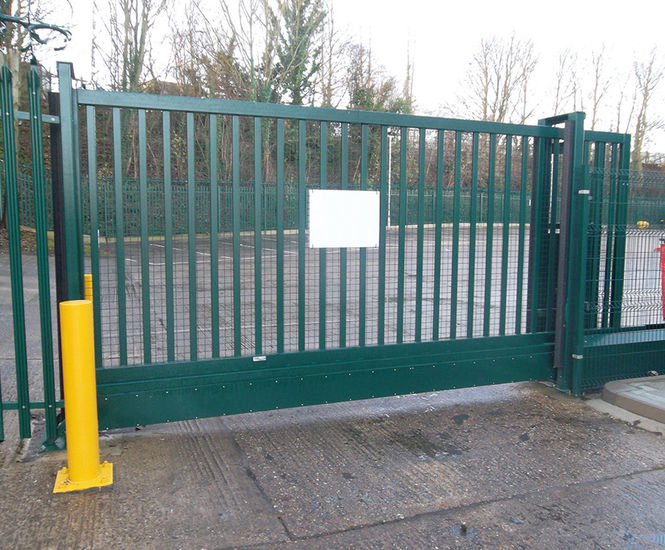

LoTracker is a cantilevered sliding automatic security gate designed to secure wide entrances up to 12,000mm, with no ground track or support required across the roadway. Made for continuous, frequent use, it is suitable for high-traffic sites and is available in a range of heights and finishes.

  • Cantilevered automatic sliding gate for wide entrances up to 12m

  • Operates without ground track, sliding 100mm above the road

  • Fully welded low carbon steel gate leaf with mesh and bar infill

  • 100% duty cycle for continuous operation

  • Range of safety features including vehicle detector loops and safety edges

  • Programmable logic controller accepts multiple access control inputs

  • Customisable heights, widths, and finishes

Applications

  • Perimeter security for commercial and industrial sites

  • Vehicle access control for logistics centres

  • Securing entrances to critical infrastructure

  • High-traffic facility entrances

  • Sites requiring shallow foundation installations

Dimensions

Maximum width 12,000mm

Standard height 2400mm

Maximum height 5000mm

Performance

Operating speed 225–500mm/second

Normal operating time 7.5–15 seconds

100% duty cycle

Materials

Low carbon steel to BS4848 Pt.2

Vertical 50mm x 25mm ERW bar infill

50mm square galvanised weld mesh

Colours

Any RAL colour

Finish

Shotblasted, hot zinc sprayed, primed, polyurethane paint

20-year corrosion protection system to BS5493, 1977 (Revised 1984)

Acid dipped and hot galvanised (smaller gates)

Installation

Shallow foundation depth 500mm

Accreditations

Secured by Design

BRE Global
