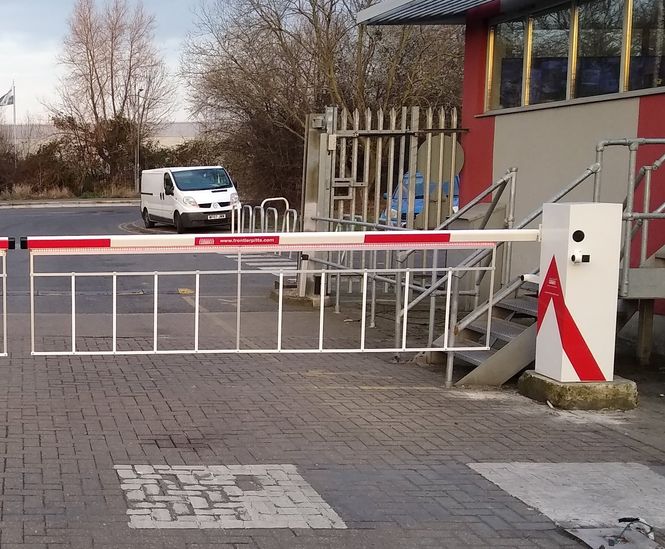

Frontier Pitts model FBX is an automatic rising arm barrier for car park and traffic control, with a maximum boom length of 4.5m. Designed for frequent use, it uses a rapid-action torque motor and supports a range of access and safety control systems. Suitable for standard and stainless steel finishes, with options for boom skirts and signage.

  • Automatic rising arm barrier for vehicle access control up to 4.5m

  • Rapid-action torque motor with instant reversal and continuous operation

  • Supports access control systems, vehicle detector loops, safety photocells and ultrasonic sensors

  • Programmable logic controller with built-in safety features

  • Cabinet made from powder-coated steel; boom made from powder-coated aluminium

  • Available with fixed, pogo stick or removable end rests

  • Optional boom lights, maglocks, articulated booms, traffic lights and signage

Applications

  • Car parks

  • Bus stations

  • Commercial and industrial sites

  • Caravan parks

  • Perimeter security

  • Controlled vehicle access points

Dimensions

Cabinet: 380 (l) x 350 (w) x 1210mm (h)

Maximum boom length: 4500mm

Maximum boom length with lower folding skirt: 4500mm

Performance

Operating speed 3.5–7 seconds (dependent on boom length, motor and skirt options)

100% duty rating (continuous operation)

Materials

Cabinet: steel

Boom: aluminium

Colours

Boom: white with red bands

Special colours available

Finish

Cabinet: de-greasing, shot blasting, zinc -rich powder prime, and polyester powder coat

Boom: powder coated

Options and variations

Lower folding skirt

Articulated boom

Stainless steel cabinet

Boom lights and LED strip lights

Warning and information signage

Fixed, pogo stick or removable end rests

Installation

Barrier foundation: 600mm² x 450mm deep

Fixed end rest foundation: 400mm² x 300mm deep

Power and control wiring ducts to be incorporated into foundations

Accreditations

Secured by Design

BRE Global
