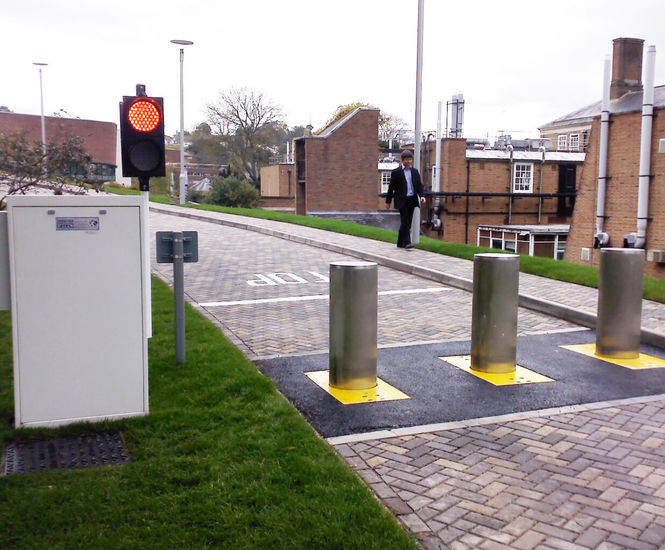

PAS 68 Terra Saturn automatic rising bollard is a hydraulically-driven, high-security barrier designed to stop a 7.5 tonne vehicle at 50mph. Made from S355 structural steel, it is impact-tested to PAS 68 standards and remains fully functional after impact. Stainless steel cladding is standard, with powder-coated finish and anti-slip top plate options. Lift height is 900mm.

  • High-security automatic rising bollard for hostile vehicle mitigation

  • Impact-tested to PAS 68, stopping 7.5t vehicle at 50mph

  • Hydraulic operation with manual hand pump and release valve

  • Fully functional after impact test

  • Compatible with access control systems and includes traffic light system

  • 100% duty cycle for continuous operation

  • Stainless steel clad as standard, with powder coated finish option

Applications

  • Perimeter security for critical infrastructure

  • Government and military sites

  • Universities and public spaces

  • Commercial and industrial premises

  • Transport hubs

  • Event venues

Dimensions

Lift height: 900mm

Performance

Impact tested to PAS 68: stops 7.5t vehicle at 50mph (1852kJ)

Normal operating speed: 6–10 seconds

Emergency Fast Operation: up to 3 seconds

100% duty cycle

Fully functional after impact

Materials

Made from S355 structural steel plate

Finish

Stainless steel clad as standard

Polyester powder coated painted finish option

Anti-slip paint for top plate option

Options and variations

Manual hand pump for power failure

Accumulator for power failure operation

Matching static bollards available

Accreditations

PAS 68

Secured by Design

BRE Global
