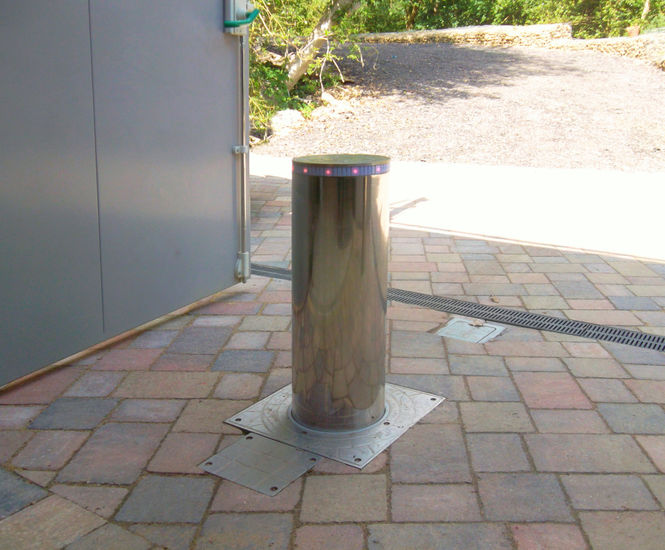

iBollards are retractable, hydraulically-powered security bollards designed for automated vehicle access control and protection against ram-raiding. Made from stainless steel, they have a 600mm lift height, 215mm diameter and are suitable for continuous, frequent use with a 100% duty rating. Compatible with access control systems and supplied with a traffic light system as standard.

  • Retractable, hydraulically-powered security bollard for vehicle access control

  • 600mm lift height and 215mm diameter

  • Made from stainless steel for corrosion resistance

  • Operates on single phase 230v supply

  • 100% duty rating for continuous use

  • Traffic light system included as standard

  • Programmable logic controller accepts multiple access inputs

  • Manual hand pump option for power failure situations

Applications

  • Commercial and industrial site entrances

  • Car parks

  • Museums and public buildings

  • Vehicle access points requiring high security

  • Protection against ram-raiding

  • Manufacturing plants

  • Caravan parks

Dimensions

Lift height: 600mm

Diameter: 215mm

Rising bollard foundation: 800mm2 x 880mm deep

Control cabinet foundation: 800mm2 x 300mm deep

Performance

Speed of operation: 5–9 seconds

100% duty rating

Materials

Stainless steel bollard

Zinc rich powder prime polyester powder coat control cabinet

Installation

Control cabinet recommended within 10m of bollard

Power and control wiring ducts to be incorporated into foundations

Accreditations

Complies with BS EN 12453 (subject to risk assessment and configuration)

Options

Signs, traffic light systems, vandal-resistant light cages

Can be interfaced to any access control system
