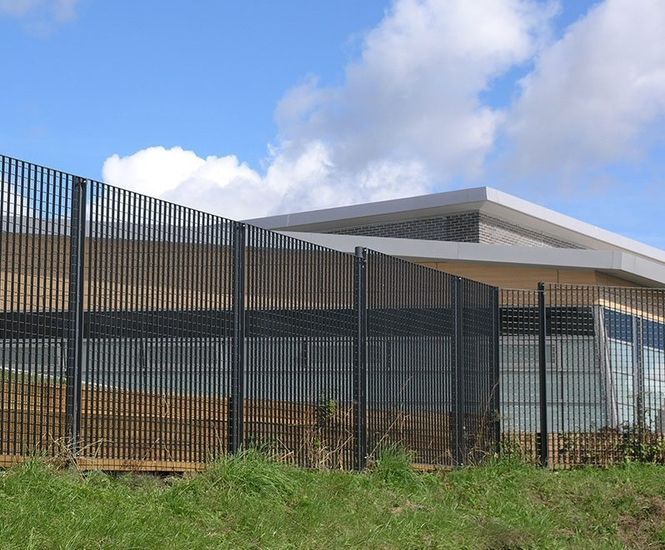

Lang+Fulton's grating fences have a contemporary appearance, well suited to a modern built environment, and are made from flat bars and plain round transverse bars in the largest panel sizes available to the UK market.

Features and benefits

  • Square mesh with small 43×44 mm aperture for enhanced security and rigidity

  • High level of strength due to mesh design and construction

  • Palermo-4HS version includes close-fixing between panel and post, with optional cranked tops or anti-intruder spikes for increased security

  • Customisable with curved or waved tops, decorative rails, finials, ornamental or laser-cut motifs

  • Hot-dip galvanised finish with optional polyester powder coating in any RAL colour

  • Complies with BS 1722-14 standards

  • Suitable for high-security fencing applications

  • Recommended for MUGAs, ball courts, and playgrounds

  • Applicable for green walls and perimeter fencing

Physical attributes

Mesh (c/c): 43×44 mm

Standard panel heights: 930, 1195, 1320, 1720, 1985, 2118, 2382, 2646, 2910 mm

Standard panel width: 1992 mm

RHS post sizes: 50×30, 60×40, 80×40, 100×50 mm (varies by height)

Materials

Made from steel grating panels and RHS posts

Finish

Hot-dip galvanised as standard Optional polyester powder coating in any RAL colour

Options and variations

Palermo-4HS version with close-fixing and optional cranked tops or anti-intruder spikes

Alternative post types: flat bar and CHS Customisable tops: curved, waved, decorative rails, finials, ornamental or laser-cut motifs

Gates: swing-hinged single or double leaf, bi-folding, pivot, and sliding gates with matching infill panels

Performance

Designed for high security and rigidity Complies with BS 1722-14
