Modena is now available in three new heights: 2400, 2700 and 3000mm.

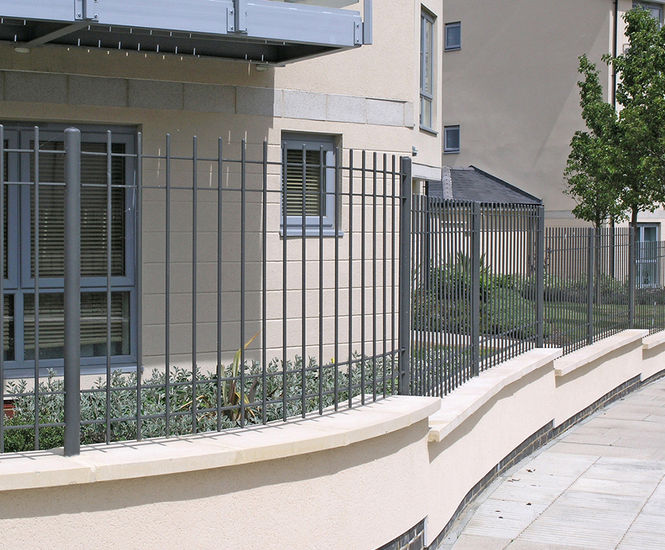

Modena is a contemporary railing fence with a stylish appearance for boundary applications, developed in collaboration with one of Italy’s leading designers. It is available in 8 different heights from 1.0 to 3.0 metres.

Fences up to 2m high: made from two or three pairs of 25x6mm horizontal flat bars which are electrofused to solid 12mm round vertical pales, each of which is attractively domed at top and bottom.

Fences above 2m high: made from three pairs of 40x6mm horizontal flat bars which are electrofused to tubular 20mm round vertical pales.

Alternative panel to post fixing methods:
a) a boltless panel to post fixing mechanism is used to create a continuous and pleasing visual line
b) similar stepped posts can be made to order where there is a full site survey
c) to accommodate uneven ground conditions, which have not been fully surveyed, the horizontal bars are joined at the ends with a short length of flat bar and fixed with a self threading screw

The mild steel is hot-dip galvanized to BS EN 1461 before the application of a polyester powder coating in matt mica grey for a smart gun-metal finish, providing optimum resistance to corrosion.

Posts:
a) 50mm diameter tubular post in a choice of flat or domed top
b) 60, 76.89 and 114mm diameter tubular posts with a flat top
c) 50x50mm Square Hollow Section (SHS)
