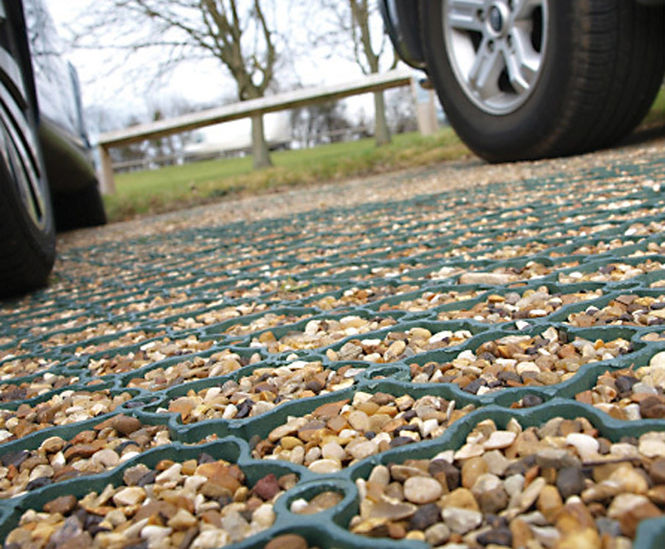

Support: The rigid interlocking cells transfer the weight of traffic direct to the sub-base beneath, protecting grass and stabilising gravel. This reduces wear strips, rutting, uneven surfaces and gravel scattering beyond where it is laid.

Permeable: The open structure of the cells (90% of surface area is porous) allows rainwater to pass through to the absorbent soil below, replenishing groundwater and reducing rainwater runoff into the sewerage system.

Access: The cells lock the gravel in place, preventing scatter beyond where it is laid and aiding access for pedestrians, prams, wheelchairs, wheelbarrows, bikes and domestic vehicles.

ACO GroundGuard makes grass and gravel easier and safer to move across and allows rainwater to permeate into the ground where it lands, while allowing the elegance of lawn or gravel to shine through.

ACO GroundGuard grants access for all

The dimensions of ACO GroundGuard's cells and their close-knit structure ensures when trafficked by a walking stick ferrule or cycle wheel, the surface remains smooth and undisturbed. The tiles can be easily cut to abut to an adjoining surface, ensuring an easy access from one surface to another. Therefore ACO GroundGuard is suitable for use in Building Regulations Part M compliant installations in England and Wales and Building Standards Section 4 compliant installations in Scotland

Features

  • Strong, robust system certified to 250 tonnes per square metre, with cell flanges effectively transferring weight to the ground below

  • 90% porous surface area allows rainwater to pass through into the ground below

  • Manufactured from 100% green recycled polyethylene

  • Tiles interlock with clip-together fixings, laid with joins staggered

  • Corner holes to secure tiles with ACO 180mm nails, allowing sloped installations of up 1:12 when pegged

  • White parking bay markers drop into cells

Benefits

  • Reinforces grass or gravel to reduce damage from regular trafficking while allowing rainwater through

  • Light weight of product allows easy transport and installation

  • Tiles easily cut to shape for irregular edging

  • Suitable for sloped installations up to 1:12 when pegged

  • Combine with ACO BorderGuard where installation adjoins flowerbed or lawn and to reduce lateral movement

  • Provides a suitable ground surface for access to buildings in accordance with Building Regulations Part M in England and Wales and Building Standards Section 4 in Scotland

  • Coverage: 4.42 tiles per square metre, 112 tiles per pallet, pallet covers 25.2m²

Recommended Applications

  • Paths

  • Cycleways

  • Domestic Drives

  • Base for Garden Buildings and Hot-tubs

  • *Private and Public Car Parks

  • *Caravan Parks

  • *Emergency Access Routes

  • *Contact ACO Technical Team to confirm suitabilityPaths

  • Private and Public Parking Areas
