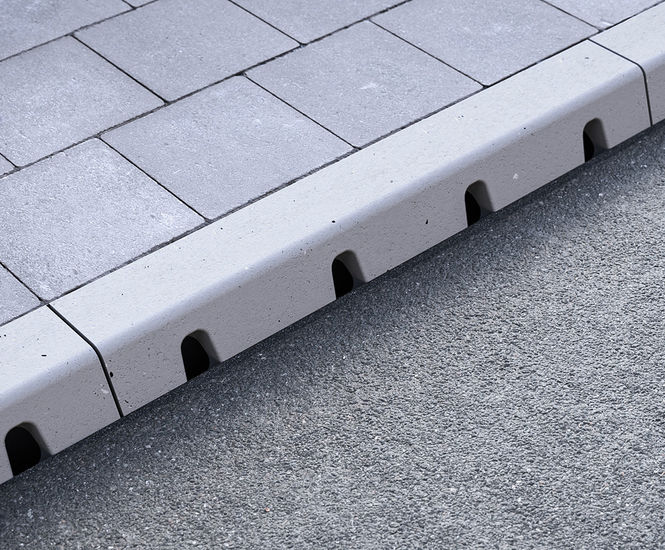

ACO KerbDrain is an award-winning combined kerb and drainage system that has been designed to form an integral part of modern sustainable surface water management solutions.
It is the first combined kerb drainage system of its kind to use recycled materials and be independently certified and Kitemarked to BS EN 1433: 2002.
Applications
The one-piece system is suitable for a wide range of applications including major and minor highways, car parks, and commercial and urban landscaping.
ACO KerbDrain provides many versatile solutions for both SUDS schemes and traditional drainage systems. Engineers and designers are able to combine the benefits of “hard” and “soft” SUDS.
System components
- range of units to match HB1, HB2 and 45° splayed profiles
- Available in 255mm, 280mm, 305mm, 380mm, 405mm, 455mm and 480mm depths.
- selection of lengths to meet the hydraulic and performance requirements of highway or drainage schemes.
- complementary and problem solving components including perforated and flush centre stones, drop kerbs, radius and mitred units, internal angles, quadrants, and bus stop units.
Meets all specification requirements:
- Fully compliant to the Specification for Highway Works
- Kitemarked to BS EN 1433:2002
- Certified by a notified body to BS EN 1433: 2002 Load Class D 400
- CE marked by a notified body
Profiles
Splay
45° profile
Designed for use on rural roads and highways
SP to HB transitions available
HB
Half battered profile
Designed for use on urban roads, highways and car parks
HB to SP transitions available
Bus Stop
Half battered profile
Designed for use at bus stops to ease pedestrian safety
Transitions to standard HB range available
Range includes
- Channels
- Rodding access units
- Drop kerbs
- Centre stones
- Transition units
